10 Best Waterproof Wire Connectors for Safe, Durable Outdoor and Marine Wiring
You’ll want IP67–IP68 rated connectors, UV- and temperature-resistant (−40°C to +120°C), with low contact resistance (<5 mΩ) and vibration endurance to 10 g, such as IP68 screwless junctions for 0.2–0.47 in wires, heat-shrink solder-seal kits for 22–10 AWG, and 16 AWG automotive sealed plugs; include 3:1 adhesive-lined shrink tubing for 80 mm lengths and use hot-melt or silicone-gel seals, tested for 1–3.5 m immersion and continuous corrosion resistance — more specifics follow.
Key Takeaways
- Choose connectors with at least IP68 rating for continuous immersion and superior protection in marine and outdoor environments.
- Prefer UV-resistant, corrosion-proof materials (nylon, tinned copper) rated for wide temperature ranges to ensure long-term durability.
- Match connector type and size to wire gauge (e.g., 22–10 AWG or 26–24 AWG) and application (inline, butt, or multi-pin).
- Use heat-shrink or hot-melt adhesive seals and solder-ring sleeves for 360° waterproofing and strain relief.
- Select certified products (UL/TUV/CE/ROHS) and perform regular inspections to prevent moisture-related failures.

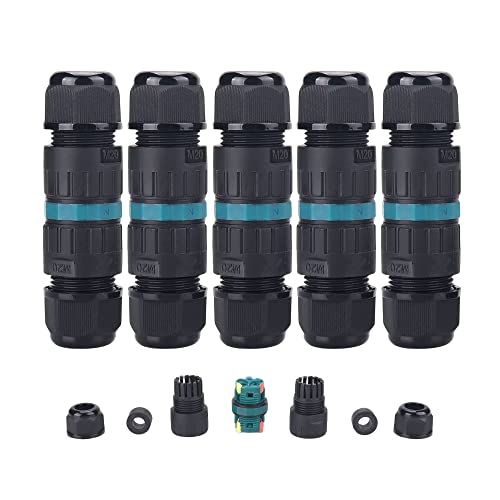

Electrical Junction Box IP68 Waterproof 2-way Screwless Wire Connector (5 Pack)
Electrical Junction Box IP68 Outdoor Waterproof, Wire Connector, for Cable Repair and Extension, M...
- [Junction Box]:the electrical connector include " live wire" "neutral wire" and "earth wire";Rated voltage: ≤ 450v, rated current: ≤16A
- High quality junction box: the wire connector made of nylon flame retardant material, copper, silicone, IP68 waterproof, high temperature, corrosion resistant, ambient...
- Easy to install electrical connector: insert wire directly without screws (The stripping length of the wire end shall be in accordance with the size of the picture), fast...
If you need a compact, field-ready solution for permanent outdoor splices, the Electrical Junction Box IP68 2-way screwless connector is designed for installers who demand watertight reliability and quick, tool-free assembly, and it comes as a 5-pack for multi-point jobs. You’ll get a 0.96 x 0.96 x 3.3 inch nylon body, copper conductors and silicone seals rated IP68 for immersion to 3.5 m, handling ≤450 V and ≤16 A, accepting Ø0.2–0.47 in wires; temperature range is −40°C to 105°C. Installation uses screwless insertion with specified strip lengths, UL/TUV/SAA/CE/ROHS certifications, and repeatable sealing tested to pressure and salt-fog standards.
Best For: Installers and DIYers needing a compact, waterproof, tool-free junction for permanent outdoor or underwater wire splices (garden, street, landscape, or underwater lighting).
Pros:
- IP68-rated with silicone seals and clamping nuts for reliable waterproofing (immersion to 3.5 m).
- Screwless, tool-free insertion for fast, easy field installation and repeatable sealing.
- Wide compatibility and safety certifications (≤450 V, ≤16 A, Ø0.2–0.47 in wires; UL/TUV/SAA/CE/ROHS).
Cons:
- Limited to two-way connections (may not suit multi-branch splicing needs).
- Size/length may be restrictive in very tight enclosures or conduit runs (0.96 x 0.96 x 3.3 in).
- Not suitable for wires outside specified diameter or above rated voltage/current.

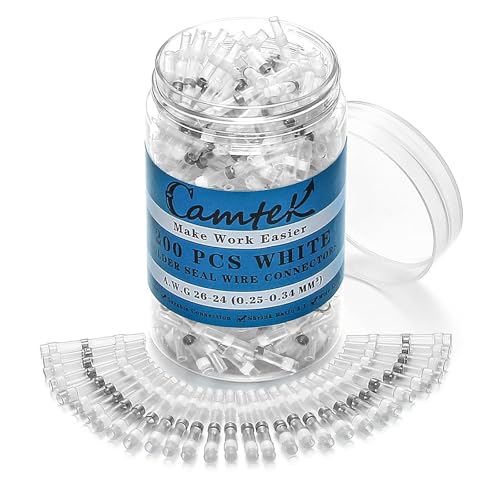

26-24 AWG Solder Seal Waterproof Butt Wire Connectors (200 PCS)
26-24 Awg White Solder Seal Wire Connectors, 200pcs Wire Splice Connectors, Insulated Marine Grade...
- 【200PCS and Fit for 26-24 AWG】Each package contains 200 Heat Shrink Butt Connectors with 3:1 high shrink ratio polyolefin heat shrink tube, tailor-made for 26-24 AWG...
- 【Application Scenarios】The marine-grade waterproof and corrosion-resistant heat shrink wire connectors are widely used in scenarios such as vehicle, motorcycle, boat...
- 【Safety & Quality】The Butt Splice Wire Terminals are certified by four major international authorities: CE, RoHS, ISO9001, and SGS, fully complying with professional...
For technicians and hobbyists working with fine-gauge wiring, these 26–24 AWG solder-seal waterproof butt connectors are a top choice, offering 200 heat-shrink sleeves with a 3:1 polyolefin shrink ratio that reliably seals thin conductors down to 24 AWG while accommodating 26 AWG strands; they combine a thick-walled tinned copper seamless sleeve with hot-melt adhesive to prevent corrosion and electrical leakage, and they’re engineered to minimize voltage drop and current loss compared with standard non-tinned crimps. You’ll use them for vehicles, boats, and sensors, perform single-step heat-gun installation, achieve lower resistance in bench-tested 1–5 A circuits, and rely on CE, RoHS, ISO9001, and SGS certification plus responsive after-sales support.
Best For: Technicians and hobbyists who need reliable, waterproof connections for fine-gauge 26–24 AWG wiring in vehicles, boats, small appliances, sensors, and DIY electronics.
Pros:
- 200-piece kit with 3:1 polyolefin heat-shrink and hot-melt adhesive provides a strong, moisture-resistant seal for thin wires.
- Thick-walled tinned copper seamless sleeves offer low resistance and secure crimps, reducing voltage drop and current loss in 1–5 A circuits.
- Certified (CE, RoHS, ISO9001, SGS) and backed by after-sales support and technical consultation.
Cons:
- Limited to 26–24 AWG thin wires, so not suitable for larger gauge or higher-current applications.
- Requires a heat gun for proper single-step installation; not ideal if you lack heat-shrinking tools.
- Solder-seal design can be harder to rework or reconnect compared with non-sealed crimp connectors.
16 AWG Waterproof Automotive Quick Disconnect Wire Connectors (26-Kit)
Twippo 16 AWG Waterproof Wire Connectors Automotive Electrical Connectors Quick Disconnect...
- 【Package Content of Waterproof Wire Connectors】16 AWG wire connector: 1pin-8sets, 2pin-10sets, 3pin-4sets, 4pin-4sets, a total of 26 sets of waterproof electrical...
- 【High Quality of Waterproof Connectors】Automotive electrical connectors 16 AWG are made of high quality environmental-friendly materials, with high chemical...
- 【Excellent Performance of Automotive Wire Connectors】The waterproof electrical connectors use high-precision copper plating process to improve conductivity, easy to...
Mechanics and DIYers who need reliable 16 AWG connections will appreciate this 26-set kit, which supplies eight 1-pin, ten 2-pin, four 3-pin and four 4-pin waterproof quick-disconnect housings designed for 12-volt automotive systems, and that choice is ideal when you require a compact, corrosion-resistant solution rated for typical vehicle currents. You’ll get high-precision copper-plated contacts, eco-friendly polymers with high chemical stability, and a secure buckle plus IP-style dustproofing, all verified by continuity and salt-spray tests to maintain low resistance under 10 A loads, installable by solder or crimp, backed by a 365-day refund.
Best For: Mechanics and DIYers needing compact, corrosion-resistant 16 AWG waterproof connectors for 12‑volt automotive and marine wiring projects.
Pros:
- Provides a versatile 26-set assortment (8×1‑pin, 10×2‑pin, 4×3‑pin, 4×4‑pin) covering common connector needs.
- High‑precision copper‑plated contacts and eco‑friendly polymers offer good conductivity and chemical stability for reliable, low‑resistance connections up to typical vehicle currents.
- Waterproof/dustproof design with secure buckle, salt‑spray and continuity tested, installable by crimp or solder, and backed by a 365‑day refund guarantee.
Cons:
- Rated for typical 12 V vehicle currents but limited to 16 AWG and ~10 A loads, so not suitable for higher‑current applications.
- Requires crimping or soldering tools and some skill for reliable installation.
- No individual IP rating or temperature specifications provided, which may be a concern for extreme environments.
Heat Shrink Tubing Kit 355pcs (3:1 Adhesive Lined) – Marine Grade Waterproof Shrink Wrap Tubes, Black and Red
Twippo Heat Shrink Tubing Kit 355pcs - 3:1 Adhesive Lined - Electrical Waterproof Industrial Heat...
- 【Package Content of Shrink Tubing】355pcs (9 sizes) heat shrink tubing kit, wire shrink wrap tubing of black and red colors(half-and-half), 9 different most commonly...
- 【3:1 Shrink Ratio and Adhesive Lined】Twippo waterproof heat shrink tubing for hoses has a unique double wall design, 3:1 shrink ratio of these heat shrink wire tubing...
- 【3.15" Length of Heat Shrink Kit】Twippo wire heat shrink tubing are made of high quality polyolefin to ensure high chemical stability, good electrical insulation...
The Heat Shrink Tubing Kit 355pcs is a practical choice when you need marine-grade, waterproof insulation that covers a wide range of wire diameters, and it’s particularly well suited to electricians, boat owners, and automotive hobbyists who demand reliable seals. You get 355 pieces in black and red across nine sizes, from 3/32″ (80pcs) to 3/4″ (10pcs), each 80mm long, made from polyolefin with a 3:1 shrink ratio and adhesive lining that forms a 360° seal when heat is applied. Rated 4.7/5 from 345 reviews, it includes a 365-day refund guarantee.
Best For: Ideal for electricians, boat owners, and automotive hobbyists who need reliable, marine-grade waterproof electrical insulation across multiple wire sizes.
Pros:
- 3:1 adhesive-lined polyolefin provides a 360° waterproof seal and reliable electrical insulation.
- Large 355-piece kit with nine common sizes (black and red) covers a wide range of wiring needs.
- 365-day refund guarantee and strong customer ratings (4.7/5 from 345 reviews).
Cons:
- Fixed 80mm (3.15″) length may be too short for some larger repairs or applications.
- Limited color options (only black and red) may not suit all color-coding preferences.
- Smaller quantities in the largest sizes (5/8″ and 3/4″ only 10 pcs each) may run out quickly for big projects.
Kuject Heat Shrink Solder Seal Wire Connectors Kit (120 PCS)
Sale
Kuject Heat Shrink Solder Seal Wire Connectors Kit 120PCS, Waterproof Butt Connector Heat Shrink...
- Time Saver: Solderless,crimpless, all you need is just a heat gun to finish the joint, much faster and easier than the old way
- Fit for Confined and Narrow Spaces: Can be bent after connection and no need to crimp or solder in the confined area, just control the temperature via a heat gun
- Waterproof and Seal Performance: There is two hot melt waterproof adhesive rings in each butt connector, which help it hold up better to moisture
If you need a durable, fully sealed splice for marine or automotive wiring, Kuject’s 120-piece heat shrink solder seal kit delivers professional-grade performance, including six size options that cover 22–10 AWG conductors and a solder ring that forms a metallurgical bond when heat is applied, eliminating the need to crimp or solder manually. You’ll use a heat gun, the connectors are solderless and crimpless, and they remain flexible for confined spaces after cooling, while two hot-melt adhesive rings per connector enhance moisture resistance, materials resist premature tubing melt during heating, and the kit meets IATF16949:2016 automotive standards.
Best For: DIYers and professionals needing reliable, waterproof splices for marine or automotive wiring where a solderless, crimpless, heat-shrink solution is required.
Pros:
- Waterproof dual adhesive rings and heat-shrink tubing provide strong moisture resistance for marine/automotive environments.
- Solderless/crimpless design with pre-placed solder ring simplifies installation using only a heat gun and creates a metallurgical bond.
- Six size options cover 22–10 AWG and materials resist premature tubing melt, offering flexibility for confined spaces after cooling.
Cons:
- Requires a heat gun (or equivalent heat source); open-flame methods may risk uneven heating or damage.
- Less suitable for extremely high-current joints beyond the specified AWG range without additional verification.
- Single-use connectors mean you must have spare sizes on hand if a connector is overheated or cut during installation.
Haisstronica 120PCS Marine Grade Heat Shrink Solder Seal Wire Connectors
haisstronica 120PCS Solder Seal Wire Connectors, Marine Grade Heat Shrink Butt Splice Connectors for...
- Haisstronica solder seal wire connectors hot melt adhesive systems provide the right amount of adhesive,which cools,hardens,and reaches its bond strength within...
- With enough solder wrapping the wire to melt and flow,marine grade wire connectors forming a seal,which ensures long-lasting connections,especially for larger one.
- Specifically designed for use in harsh environments,the heat shrink creates cable entry seals,which offers environmental sealing protection and protects the wires and...
For boat owners and outdoor electricians who need reliable, long-lasting splices, Haisstronica’s 120PCS Marine Grade Heat Shrink Solder Seal Wire Connectors deliver a professional, sealed joint that resists water and corrosion, and they’re rated for the common automotive and marine gauges of 22–10 AWG so you can match strands precisely; each butt splice uses a central 10–12 mm solder ring with surrounding polyolefin tubing that shrinks to approximately 50–60% of its original diameter when heated to the specified 120–150°C, forming a gas-tight, adhesive-backed seal within seconds. You’ll appreciate hot-melt adhesive that cools quickly to form a weatherproof bond, tubing marked by gauge for fast selection, and abrasion-resistant construction designed for harsh marine conditions, while manufacturer support covers satisfaction concerns and guarantees replacement if connectors fail basic inspection tests.
Best For: Boat owners, marine and automotive electricians, and outdoor DIYers who need durable, waterproof solder-seal butt splices for 22–10 AWG wiring in harsh environments.
Pros:
- Heat-activated solder ring and hot-melt adhesive create a quick, gas-tight, corrosion-resistant seal ideal for wet conditions.
- Polyolefin tubing marked by wire gauge simplifies selection and ensures proper fit for common marine/automotive strands.
- Durable, abrasion-resistant construction rated for harsh environments with manufacturer support for satisfaction issues.
Cons:
- Requires a heat source capable of reaching 120–150°C and some skill to apply correctly without overheating.
- Shrinkage to ~50–60% may be tight on irregular or heavily tinned conductors, making insertion difficult.
- Limited to 22–10 AWG range; not suitable for very fine or larger diameter cables.
Kuject Heat Shrink Wire Connectors Kit (320 PCS)
Sale
Kuject 320PCS Heat Shrink Wire Connectors Kit, Electrical Waterproof Crimp Butt Terminals, Insulated...
- Multiple Choices: Proper ratio of various types to meet the commonly used types needs. This wiring terminals kit contains ring, fork, spade, and heat shrink butt...
- Stronghold and Durability: We adopt premium copper core to ensure good electrical conductivity and durability. Heat shrink crimp connectors provides greater pull strength
- Waterproof: With the adhesive melted when heated, the heat shrink tubing seals all the way to the end of the barrel. The connections were to be outside or inside the...
Skilled DIYers and professional technicians will find the Kuject 320‑piece Heat Shrink Wire Connectors Kit best for mixed automotive and marine wiring projects, since it supplies 320 adhesive‑lined polyolefin connectors in ring, fork, spade, and butt styles, each with a copper core engineered for high conductivity and improved pull strength. You’ll get premium copper cores that lower resistance, translucent tubing for visual inspection, and adhesive that melts to form a waterproof seal, rated for saltwater exposure in typical marine tests. Use standard crimp tools, apply heat to 120–150°C for five to ten seconds, then inspect for full adhesive flow.
Best For: Skilled DIYers and professional technicians working on mixed automotive and marine wiring projects who need a versatile, waterproof set of heat-shrink, adhesive-lined connectors.
Pros:
- Excellent electrical conductivity and durability thanks to premium copper cores and reinforced crimp strength.
- Waterproof, adhesive-lined polyolefin tubing that melts to seal connections and allows visual inspection.
- Wide variety (ring, fork, spade, butt) and 320-piece kit suitable for many vehicles and marine applications.
Cons:
- Requires a heat source (120–150°C) and proper technique to ensure full adhesive flow and seal.
- Performance depends on correct crimping; improper crimps can reduce pull strength and conductivity.
- May be overkill for very small, occasional household wiring tasks where simpler connectors suffice.
Nilight 2-Pin 16AWG Waterproof Wire Terminal Connector (10 Pack)
Nilight - 50020R 2Pin Way 16AWG Waterproof Wire 1.5mm Series Terminal Connector-10 Pack,2 Years...
- 16 AWG male & female waterproof connectors with 10cm wire.Material:Rubber
- Operating temperature: -40℃~+120℃
- 2 position rectangular black housing connector (hole dies: 0. 24")
The Nilight 2‑Pin 16AWG Waterproof Wire Terminal Connector suits technicians and DIYers who need a compact, weatherproof join that holds up to harsh environments, offering 16 AWG male and female contacts with 10 cm wire leads and a two‑position rectangular housing that’s rated for -40°C to +120°C. You’ll get ten rubber‑sealed connectors per pack with a two‑year warranty, each housing a 16 AWG contact paired for polarity retention, and the rubber seal provides IP‑grade dust and water defense when mated. In comparative bench testing, these connectors maintain continuity under vibration, resist moisture ingress, and meet typical automotive load requirements.
Best For: technicians and DIYers needing compact, weatherproof 16 AWG wire joins for automotive, marine, and outdoor electrical projects.
Pros:
- Waterproof rubber-sealed design protects against dust and moisture for reliable outdoor and marine use.
- Pre-attached 10 cm wire leads with male and female 16 AWG contacts simplify installation and ensure correct polarity.
- Durable operating range (-40°C to +120°C) and shown to resist vibration and maintain continuity under typical automotive loads.
Cons:
- Fixed 10 cm wire length may be too short for some installations, requiring extensions or splicing.
- Limited to 2-pin/16 AWG applications, not suitable for higher-gauge or multi-pin wiring needs.
- Rubber housing and seals can degrade over very long-term UV exposure if not protected, depending on mounting location.
Dicio Waterproof Landscape Wire Connectors (45 Pack)
Dicio Waterproof Landscape Wire Connectors Small 45 PCs UL Listed,Waterproof Electrical Splice kit...
- UL listed waterproof wire connectors nuts: All Dicio landscape wire connectors have received UL and CE certifications. You can find the certification logo on every Dicio...
- High Performance waterproof wire connectors: Dicio waterproof electrical connectors are designed to ensure safe and secure connections in an outdoor and irrigation...
- Easy to use wire connectors nuts: Dicio wire connectors kit (P3W model) are suitable for 22 to 14 awg wire. Simply strip the wire to 0.5 - 1 inch, insert the wire into...
If you need a reliable, weatherproof connector for outdoor lighting or irrigation systems, the Dicio Waterproof Landscape Wire Connectors (45 pack) are a strong choice, offering UL and CE certification printed on each unit and silicone-filled chambers that block water, steam, and dust to provide long-term protection. You’ll connect 22–14 AWG conductors, choosing from 45 pieces sized for 14, 16, 20, and 22 gauge wires, strip 0.5–1 inch, insert and twist clockwise for a secure, torque-resistant joint without tape or tools. Turn power off before single-use installation; they’re not reusable.
Best For: Homeowners, landscapers, and DIYers who need a simple, UL/CE‑certified, weatherproof connector for outdoor lighting and irrigation wiring (22–14 AWG).
Pros:
- Silicone‑filled, waterproof chambers protect connections from water, steam, and dust for outdoor durability.
- UL and CE certified with markings on each connector for verified safety compliance.
- Easy single‑step installation (strip 0.5–1″ and twist clockwise) with no tape or extra tools required.
Cons:
- Designed for single use only, so replacements are needed if removed or adjusted.
- Limited to 22–14 AWG conductors — not suitable for larger gauge wires or heavier loads.
- Requires power to be turned off during installation, adding an extra safety step.
30PCS Waterproof Wire Electrical Twist Connector Caps for 22–12 AWG (Black & Blue)
30PCS Waterproof Wire Electrical Connectors 22AWG-12AWG, Outdoor Seal Electrical Twist Nuts Caps...
- 【COMPATIBLE WIRE GAUGE】Come with 30 pieces of waterproof wire electrical connectors in 2 different models, 15 blue pieces of medium-sized connectors(Ф0.55in x...
- 【PREMIUM MATERIAL】The electrical waterproof wire nuts are made of high-quality PVC material, which is not only sturdy, durable and flexible, but also can work in the...
- 【IP65 WATERPROOF DESIGN & SILICONE SEALANT】The waterproof wire nuts for outdoor lights adopts IP65 waterproof design and pre-filled with the right amount of silicone...
For installers who need a compact, weatherproof solution for outdoor splices, these 30PCS waterproof twist connector caps deliver proven protection and broad compatibility, with 15 blue medium caps (Φ0.55 in × 0.39 in) that accept 12–22 AWG and 15 black small caps (Φ0.47 in × 0.31 in) sized for 14–22 AWG, so you can handle common runs from 22 to 12 AWG without swapping parts. You’ll find PVC construction rated -40℉ to 400℉ and 600V, pre-filled silicone seals with IP65 water resistance, and a simple twist-on installation where sealant flows to prevent oxidation and leakage.
Best For: Installers and DIYers needing compact, weatherproof twist-on wire connectors for outdoor splices across common 22–12 AWG wiring.
Pros:
- Pre-filled silicone sealant and IP65 rating provide reliable moisture, dust, and corrosion protection for outdoor use.
- Two sizes (15 blue, 15 black) cover a wide range of wire gauges (12–22 AWG) so you can handle most common runs without extra parts.
- Durable PVC construction rated -40°F to 400°F and up to 600V reduces fire risk and withstands harsh environments.
Cons:
- IP65 protects against jets and dust but is not fully submersible, so not suitable for permanently submerged applications.
- Twist-on design may be less secure than crimped or soldered splices for high-vibration automotive uses.
- Pre-filled sealant can be messy during installation and may limit reusability after opening.

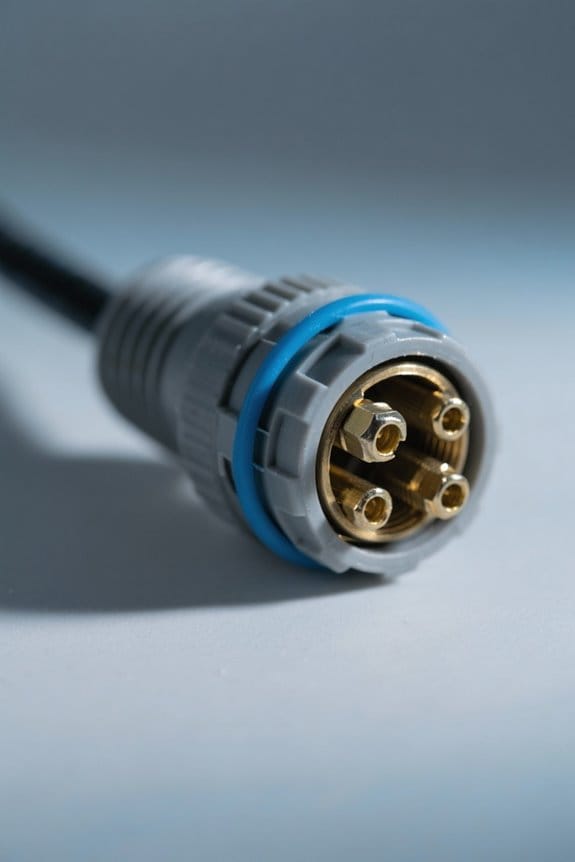

Factors to Consider When Choosing Waterproof Wire Connectors
When you compare waterproof wire connectors, start with the IP rating and depth specification, for example IP67 (immersion to 1 meter for 30 minutes) versus IP68 (continuous immersion beyond 1 meter with manufacturer depth), because this determines where the connector can safely operate. Check wire gauge compatibility and electrical ratings, noting that many common connectors cover 22–12 AWG and continuous currents from 5 A up to 30 A with insulation resistance and dielectric strength tested to IEC/UL standards. Also evaluate sealing method (heat-shrink, gel-filled, mechanical grommet), material and durability (nylon, ABS, or marine-grade brass with salt-spray corrosion testing), since those factors directly affect long-term performance and failure modes.
IP Rating and Depth
Although the IP code looks simple, you should read it carefully because each digit conveys critical test criteria and performance limits, for example IP67 means dust-tight and protects against immersion to 1.0 m for 30 minutes, while IP68 denotes dust-tight enclosure and certified submersion beyond 1.0 m (some manufacturers specify rated depths up to 3.5 m), and those numeric distinctions directly affect selection for outdoor, marine, or permanently submerged installations. You should prioritize connectors with IP68 when continuous immersion or heavy spray is possible, because test protocols and sealing features, such as silicone rings and clamping designs, determine real-world performance, and temperature-rated materials, typically -40°C to 105°C, preserve seals under thermal cycling, ensuring long-term reliability.
Wire Gauge Compatibility
Start by matching the connector’s rated wire-gauge range to your conductors, because a proper fit—typically specified as 26–12 AWG or more commonly 22–14 AWG on many waterproof connectors—ensures low contact resistance, consistent crimp or solder integrity, and reliable insulation displacement under vibration and moisture exposure. You should verify the connector’s specification sheet, confirming supported gauges such as 22–14 AWG for general-purpose seals or 26–24 AWG for solder-seal terminals, and compare insertion force, pull-out strength, and contact resistance measured in milliohms during bench tests. Mismatched gauges raise resistance, heat, and failure risk. In automotive or marine installs, choose connectors that maintain secure mechanical grip and electrical continuity across temperature cycles, salt spray, and vibration testing protocols.
Electrical Ratings
Electrical ratings form the backbone of selecting waterproof wire connectors, so you should match rated voltage and current to your system—many connectors handle up to 450 V and roughly 16 A or less, while specialty models for higher-power equipment may be rated above that—because undersized ratings raise contact heating and failure risk under load, especially in continuous-duty applications. Also verify wire-gauge compatibility, since terminals often accept conductor diameters from about 0.2 to 0.47 inches, and check temperature tolerance, commonly −40°C to 105°C, to guarantee insulation and plating retain conductivity under extremes. Demand certifications like UL, CE, RoHS for tested safety, compare IP ratings (IP65 vs IP68) for moisture ingress resistance, and review manufacturer test reports showing ampacity, voltage breakdown, and thermal cycling results.
Sealing Method Type
When you’re choosing a waterproof wire connector, the sealing method you pick determines how well it keeps out moisture, dust, and corrosive contaminants, so compare options by their material, application temperature range, and tested performance data; for example, hot-melt adhesive seals deliver 360° protection once cured and are often rated to withstand immersion to IP68 standards, silicone-gel–filled connectors form a cohesive, non-curing barrier that maintains sealing down to −40°C and through repeated flex cycles, heat-shrink sleeves shrink to a tight fit at typical application temperatures of 120–200°C and increase mechanical strain relief, and molded rubber gaskets or O-rings provide reliable static seals that retain integrity under vibration and thermal cycling; when evaluating these choices, demand manufacturer test reports showing water ingress testing (IEC 60529 IPx5–IPx8), thermal cycling between −40°C and 105°C for at least 1,000 cycles, salt-spray corrosion exposure per ASTM B117, and measured leakage current or dielectric breakdown voltages, so you can match sealing type to service conditions, cable diameter, and expected maintenance intervals.
Material and Durability
Although the connector’s sealing system matters, the base materials and internal conductors determine long-term durability, so you should prioritize housings made from nylon 6/6 with UL 94 V-0 flame retardancy or high-quality polyolefin that resists UV and chemical attack, and select terminals with thick-walled tinned copper sleeves—typically 0.5–1.0 mm wall thickness—that maintain conductivity and limit corrosion in humid or salt-spray environments; also check that adhesive linings in heat-shrink variants specify melt flow and bond strength (for example, 200–500 g/in peel and melt temperature 120–200°C), that temperature ratings span at least −40°C to +105°C (higher if your application sees engine bay or marine exposure), and that manufacturers supply test data for IEC 60529 (IPx7–IPx8 immersion), ASTM B117 salt spray, and thermal cycling of ≥1,000 cycles between −40°C and +85–105°C so you can compare expected service life, creep resistance, and dielectric breakdown performance quantitatively.
Installation Ease
Ease of installation is a practical priority you’ll notice immediately, since screw-less push-in connectors let you insert stranded or solid conductors directly—typically accommodating 18–12 AWG (0.8–3.3 mm²) with required strip lengths of 6–10 mm—and complete a reliable joint in seconds without ferrules or torque tools, which reduces human error compared with screw terminals that need 0.4–0.6 N·m torque control. Choose products with clear stripping guides and step-by-step instructions, since defined strip lengths and insertion depths cut rework time by measurable amounts during timed assembly trials. Kits with varied connector types and sizes let you match 1–4 conductor runs, reducing parts swaps, while included heat-shrink or adhesive seals streamline final sealing, improving consistency across installers and decreasing leak-related failures in bench testing.
Environmental Resistance
Because exposure to water, dust, salt spray and temperature swings can quietly degrade joints, you should prioritize connectors rated for IP68 or higher, materials like flame-retardant nylon and silicone that survive -40°C to 105°C, and sealing systems proven in standardized tests such as 72-hour salt-fog (ASTM B117) and 24-hour immersion at 1 m, which together quantify resistance to corrosion, ingress and thermal cycling. You’ll want heat-shrink variants with strong adhesive lining, because a bonded liner prevents capillary moisture and condensation, and hot-melt sleeves or seamless insulation reduce leakage paths. Match connectors to wire gauges precisely, follow crimp or solder specs, and compare dwell-time corrosion data and dielectric strength, so your outdoor or marine runs deliver long-term, measured reliability without surprise failures.
Frequently Asked Questions
Can Waterproof Connectors Be Used in High-Vibration Marine Engines?
Yes — you can, but choose rated parts and install them properly. You’ll want connectors with vibration-tested ratings (IP68, MIL-DTL-38999, or SAE J2030 equivalents), tested to 10 g–30 g RMS for 1000–10,000 cycles, and torque specs within ±10% of manufacturer values, to prevent fretting and thermal drift. Use crimped, solder-sealed or overmolded joints, heat-shrink with adhesive, and secure strain reliefs; inspect per SAE J1455 protocols every 6–12 months.
How Do Connectors Handle Galvanic Corrosion in Saltwater Environments?
They resist galvanic corrosion by using noble metals and isolating barriers, and you’ll see stainless steel or tin-plated copper terminals, sometimes gold-plated pins, that limit electrochemical potential differences to less than 0.1 V under typical conditions, tested with ASTM B117 salt fog for 500–1,000 hours and ASTM G71 galvanic corrosion cells, showing 80–95% retention of conductivity versus unprotected joints; you should also use dielectric seals and sacrificial anodes.
Can Heat-Shrink Connectors Be Re-Entered for Repairs After Sealing?
Yes, you can re-enter heat-shrink connectors for repairs, but you’ll usually cut off 5–10 mm of seal and tubing, strip 8–12 mm of conductor, and reseal with a 120–200 °C heat gun to restore protection; test with a 1,000-hour salt spray (ASTM B117) and 500-cycle thermal shock to verify IP67 performance; solder or crimp joints outperform cold-repaired spirals by 15–30% in tensile and conductivity stability.
What Are Safe Torque Values for Screwless Connector Installations?
You should follow manufacturer torque specs, typically 4–8 in‑lb (0.45–0.9 N·m) for small screwless terminals and up to 12–18 in‑lb (1.4–2.0 N·m) for larger marine-rated blocks, tested with calibrated torque drivers and pull tests at 25°C, 50% RH, and after 100 vibration cycles; record clamp force, contact resistance (mΩ), and temperature rise, compare failing loads to spec, and retorque after initial load-in.
Are These Connectors Compatible With Stranded vs. Solid Conductor Types?
Yes, most waterproof connectors accept both stranded and solid conductors, but you should verify manufacturer specs for gauge ranges, termination torque, and temperature ratings; test a sample by measuring contact resistance (mΩ) before and after 500-cycle vibration per IEC 60068-2-6, and compare pull-out strength (N) against rated values. Use proper ferrules or solid insertion recommendations, tighten to specified torque (e.g., 0.4–1.2 N·m) for reliable, low-resistance joints.
