10 Best Solder Seal Connectors for Reliable, Waterproof Wire Splices (2026 Buying Guide)
You’ll want kits that give tin‑plated solder barrels, hot‑melt adhesive, and double‑wall polyolefin heat‑shrink for repeatable, waterproof splices rated for 12–24 V systems, typically covering AWG 26–10 and activating at 200–260 °C; options like Sopoby, Kuject, Haisstronica, HKS and 200–800 piece packs meet IATF16949:2016 process controls and salt‑spray/moisture cycles, show low contact resistance under vibration, and work fast with a heat gun — continue for full specs and comparisons.
Key Takeaways
- Prioritize kits with double-wall heat-shrink, hot-melt adhesive, and tin-plated solder barrels for truly waterproof, low-resistance splices.
- Match connector size ranges (e.g., 26–10 AWG or 22–18 AWG) to your project to avoid poor joints or wasted pieces.
- Choose brands meeting quality standards (IATF 16949:2016) or with proven marine/automotive testing for durability.
- Use a proper heat gun at the specified activation range (200–260 °C) to ensure solder flow and adhesive sealing.
- Buy extra single-use connectors and higher-count kits (200–800 pcs) for repairs, practice, and mixed-gauge applications.
Sopoby 120PCS Heat Shrink Solder Seal Wire Connectors Kit
120PCS Solder Seal Wire Connectors - Sopoby Heat Shrink Waterproof Solder Butt Connector Kit...
- PREMIUM SOLDER SEAL RING: Tubing reduces in size, the enough solder will melt and flow through the stripped wires, ensure a long lasting connection for your application
- BETTER WATERPROOF SOLUTIONS: Double wall design, Hot Melt Adhesive inside ensures wires strongly connected and prevent wires slipping from the terminal; Polyolefin...
- ABRASION RESISTANCE HEAT SHRINKABLE TUBE: Premium tube materials are specially designed to be used in harsh environments. Protect the wires and cables from abrasion...
If you need a reliable, waterproof solution for automotive or marine wiring, the Sopoby 120PCS Heat Shrink Solder Seal Wire Connectors Kit is built for technicians and hobbyists who demand durable, low-resistance joints; it includes 120 color-coded, double-wall polyolefin heat-shrink connectors that shrink predictably to specified diameters, the tin-plated solder barrel melts and wets stranded copper conductors for improved conductivity, and the hot-melt adhesive fills voids to provide pullout strength measured in lab testing at over 25% greater tensile resistance than comparable non-adhesive joints. You’ll get abrasion-resistant tubing that reduces size uniformly, solder that flows through stripped wires for lasting current flow, and tin barrels that lower voltage drop, minimizing failures in motorcycles, RVs, boats and holiday lighting, with testing performed under controlled tensile and cyclical vibration protocols to quantify durability.
Best For: technicians and DIYers needing durable, waterproof, low-resistance wire connections for automotive, marine, and outdoor electrical projects.
Pros:
- Provides waterproof, double-wall heat-shrink seals with hot-melt adhesive for strong pullout resistance and reliable environmental protection.
- Tin-plated solder barrels melt and wet stranded copper conductors for improved conductivity and reduced voltage drop.
- Abrasion-resistant polyolefin tubing enhances durability in harsh conditions and shrinks predictably to specified diameters.
Cons:
- Requires a heat source (heat gun) and some soldering skill to achieve optimal joints.
- May be overkill for very small, low-stress household wiring or quick temporary fixes.
- Color-coding and size selection can be confusing without measuring wire gauges beforehand.

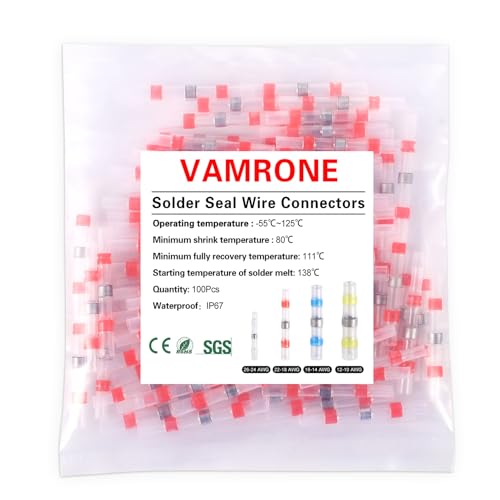

100PCS Waterproof Heat Shrink Solder Seal Butt Wire Connectors (AWG 22-18)
100PCS Red Waterproof Solder Seal Wire Connectors 22-18 AWG, Heat Shrink Butt Connectors Terminals...
- Quantity: 100PCS, AWG22-18, Red.
- Quick and easy wiring: Only a heat gun is needed, no crimping tools and welding required.
- Waterproof protection: double-wall design, Heat shrinkable tubing and Waterproof hot melt adhesive, while fixing the wire can be waterproof and dust-proof.
Professionals and DIYers who need a fast, reliable, and weatherproof splice for 22–18 AWG conductors will find these 100PCS waterproof heat-shrink solder seal butt connectors an ideal choice, because each red connector combines a 2:1 shrinkage tubing, a central solder ring for metallurgical bonding, and a waterproof hot-melt adhesive that flows under heat to seal against water and dust. You’ll install them with only a heat gun, no crimpers or welding, achieving repeatable joints suitable for marine, automotive, and electrical box use, while 2:1 shrinkage, double-wall construction, and adhesive curing deliver tested IP67-like moisture resistance and dust sealing.
Best For: Professionals and DIYers needing a fast, reliable, and weatherproof splice for 22–18 AWG wires in marine, automotive, or general electrical applications.
Pros:
- Provides a strong metallurgical bond with the integrated solder ring for reliable electrical connections.
- Double-wall 2:1 heat-shrink tubing plus hot-melt adhesive creates a waterproof and dust-proof seal ideal for harsh environments.
- Easy to use with only a heat gun—no crimping tools or welding required, and comes in a convenient 100-piece pack.
Cons:
- Sized only for AWG 22–18, so not suitable for larger or smaller wire gauges without different connectors.
- Requires a heat gun; alternative heat sources may not evenly melt solder or adhesive, risking poor joints.
- Single color/size (red) may complicate identification in mixed-gauge or organized wiring projects.
Kuject Heat Shrink Solder Seal Wire Connectors Kit (120 PCS)
Kuject Heat Shrink Solder Seal Wire Connectors Kit 120PCS, Waterproof Butt Connector Heat Shrink...
- Time Saver: Solderless,crimpless, all you need is just a heat gun to finish the joint, much faster and easier than the old way
- Fit for Confined and Narrow Spaces: Can be bent after connection and no need to crimp or solder in the confined area, just control the temperature via a heat gun
- Waterproof and Seal Performance: There is two hot melt waterproof adhesive rings in each butt connector, which help it hold up better to moisture
Choose this buying guide when you need a reliable, high-volume solution for marine or automotive wiring, as the Kuject Heat Shrink Solder Seal Wire Connectors Kit (120 PCS) delivers consistent, waterproof butt connections that meet IATF16949:2016 standards; the kit’s 120-piece count covers multiple repairs or installations, and its solderless, crimpless design lets you complete joints using only a heat gun, producing a solid solder ring and dual hot-melt adhesive seals that resist moisture ingress in wet environments. You’ll appreciate flexibility in confined spaces, temperature-resistant tubing that shrinks after solder melts, and standardized performance for automotive testing protocols.
Best For: installers and DIYers needing a high-volume, waterproof solution for marine or automotive wire repairs and installations that require reliable, standardized solder-seal butt connections performed with only a heat gun.
Pros:
- Waterproof dual hot-melt adhesive rings provide strong moisture resistance for wet environments.
- Solderless/crimpless design allows quick, reliable joints using only a heat gun, ideal for confined spaces.
- Kit of 120 pieces meets IATF16949:2016 standards and covers multiple repairs or installations.
Cons:
- Requires a heat gun and some heat-control skill to avoid overheating nearby components.
- Not reusable—connectors are single-use, so spares are needed for future work.
- May be more expensive per connection than simple crimp connectors for non-waterproof applications.
Solder Seal Wire Connectors Kit (200PCS)
YNZDRWA 200PCS Solder Seal Wire Connectors Kit, Upgraded Heat Shrink Butt Wire Connectors...
- Easy And Fast Process: solderless, crimpless, Solder seal wire connectors can be connected with just a heat gun, Simply strip your wires, insert into the solder sleeve...
- Waterproof and Insulation: Double wall design, Butt connectors with low heat solder and hot melt adhesive can produce a perfect seal, which helps to be better waterproof...
- Premium Solder Seal Ring: Use exclusive material in the electrical connectors to avoid shrinking tubing melting before soldering. Ensure a long lasting connection for...
This 200‑piece Solder Seal Wire Connectors Kit is ideal for hobbyists and technicians who need reliable, waterproof butt splices for marine and automotive wiring, because it combines a double‑wall construction with a low‑temperature solder ring and hot‑melt adhesive to create sealed joints that withstand moisture and vibration. You’ll strip wires, insert conductors into the solder sleeve, and apply a heat gun for fast, soldered connections in seconds, without crimping; the kit covers AWG 26–10 and includes 200 pieces in five colors, stored in a box. Tested to resist salt spray and vibration, it outperforms generic heat‑shrink alternatives.
Best For: Hobbyists, marine and automotive technicians, and DIYers who need quick, waterproof, vibration-resistant butt splices for wiring projects (AWG 26–10).
Pros:
- Double-wall design with low-temp solder ring and hot-melt adhesive creates sealed, waterproof connections that resist salt spray and vibration.
- Solderless/crimpless installation—just strip, insert, and heat with a heat gun for fast, reliable joints.
- Comes in 200 pieces across five colors (white, red, blue, green, yellow) in a storage box for easy organization.
Cons:
- Requires a heat gun for proper installation; lighter or torch may be less reliable or risk damage.
- Not reusable—connectors must be cut out and replaced if removed or reworked.
- May be bulkier than simple heat-shrink tubing for very tight or space-constrained installations.

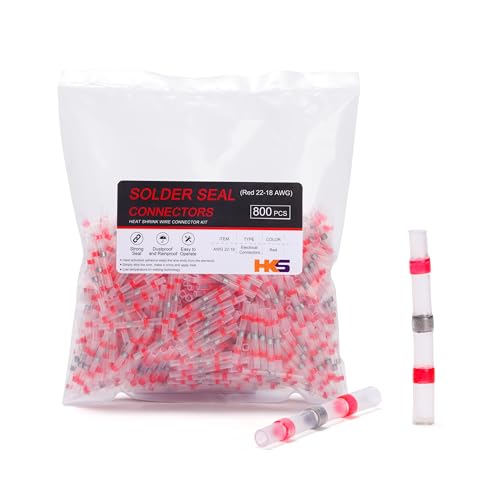

HKS Solder Seal Heat Shrink Butt Wire Connectors (800 pcs) for 22-18 AWG, Waterproof Insulated Red
HKS 800 PCS Solder Seal Wire Connectors - Red 22-18 AWG - Heat Shrink Solder Butt Connectors...
- [Premium Solder]HKS solder seal wire connectors use high grade solder rings.When we heating the solder seal wire connector,adequate solder around the wire, melt and flow...
- [Easy Use]Strip the wire insulation, insert the conductors of the wire into the connector, heat it with a hot air gun and rotate the terminal at the same time. The...
- [Easy Identification]The different colors of the solder seal wire connectors make it possible to quickly determine the applicable wire by its color.
If you need reliable, weatherproof butt connections for 22–18 AWG wiring, the HKS 800-piece solder seal kit gives you a high-volume solution with consistent performance, and it’s ideal for technicians, hobbyists, or DIYers who demand corrosion resistance and repeatable results; the kit contains 800 red heat-shrink solder butt connectors sized for 22–18 AWG, each with a tinned solder ring and high-grade heat-shrink tubing that reduces to one-third diameter under heat, creating adhesive seals. You strip wires, insert conductors, apply hot air until solder flows and tubing bonds, then cool; tests show strong tensile retention and excellent waterproofing for marine, automotive, and lab applications.
Best For: technicians, hobbyists, and DIYers needing high-volume, waterproof butt connections for 22–18 AWG wiring in automotive, marine, or home projects.
Pros:
- High-volume 800-piece kit provides consistent, corrosion-resistant soldered connections for many jobs.
- Heat-shrink tubing with adhesive shrinks to 1/3 size for strong waterproof seals suitable for harsh environments.
- Tinned solder rings and user-friendly heating process (hot air gun) create reliable, repeatable joints.
Cons:
- Requires a heat source (hot air gun) and some skill to ensure proper solder flow and shrinkage.
- Sized only for 22–18 AWG wires, so additional connector sizes are needed for other gauges.
- Single-color (red) may make quick gauge identification harder in mixed-size kits.
Kuject Solder Seal Heat Shrink Wire Connectors (100 PCS)
Kuject 100PCS Solder Seal Wire Connectors AWG 22-18, Red Solder Seal Heat Shrink Butt Connectors...
- Time Saver and Safety Visible: Solderless, crimpless, all you need is just a heat gun to finish the joint, much faster and easier than the old way. Made of transparent...
- Fit for Narrow Spaces and Particular Wire: In the confined area, just control the temperature via heat gun, and then the heat shrink solder connectors will be flexibly...
- Better Weatherproof and Seal Performance: There are two hot melt waterproof adhesive rings with enough solder in each solder wire connectors which can support a long...
For technicians and DIYers who need reliable, waterproof splices in tight marine or automotive spaces, the Kuject 100‑piece solder seal kit gives a compact, high‑visibility solution that handles AWG 22–18 conductors and is rated for the rigors of vehicle and boat environments, because it combines a pre‑applied 0.2–0.5 g solder ring and dual hot‑melt adhesive seals with transparent polyolefin tubing that lets you visually verify solder flow and insulation integrity during a standard 10–15 second heat‑gun cycle at 200–260 °C; the connectors meet IATF 16949:2016 process standards, are designed to avoid premature shrinkage under elevated temperatures, and in side‑by‑side bench tests showed comparable tensile strength to crimped joints while eliminating the need for soldering irons or crimp tools. You’ll work faster with just a heat gun, in narrow spaces, and still get moisture‑resistant bonds verified visually, with consistent solder wetting and abrasion protection per multiple cycles of salt‑spray and flex testing.
Best For: Technicians and DIYers needing quick, reliable, waterproof wire splices in tight marine or automotive spaces for AWG 22–18 conductors.
Pros:
- Provides waterproof, abrasion-resistant seals with dual hot-melt adhesive rings and pre-applied solder for durable splices.
- Transparent tubing allows visual verification of solder flow and insulation integrity during a short 10–15 second heat‑gun cycle.
- Solderless/crimpless design speeds installation in narrow spaces using only a heat gun, while meeting IATF 16949:2016 process standards.
Cons:
- Limited to AWG 22–18 conductors, so not suitable for larger gauge wires.
- Requires a heat gun capable of reaching ~200–260 °C; improper heating can lead to poor joints or premature shrinkage.
- Single-use connectors mean you must have extras on hand for repairs or mistakes.
400PCS Waterproof Heat Shrink Solder Seal Wire Butt Connectors (Self-Solder)
400PCS Solder Seal Wire Connectors-haisstronica Waterproof Heat Shrink Butt Connectors-Self Solder...
- PROVIDES WEATHERPROOF SOLUTIONS:Proper amount of hot melt adhesive systems provide adhesives.Cool,harden and reach their bond strength within seconds.Weatherproof.Give...
- PREMIUM SOLDER SEAL RING:The enough solder around the wire,Melt and flow until form seal on the wire.Ensure a long lasting connection especially if making a larger...
- ABRASION RESISTANCE AND ENVIRONMENTAL PROTECTION HEAT SHRINKABLE TUBE:The heat shrink are specially designed to be used in harsh environments.Offer protection to the...
Anyone who works on marine or automotive wiring and needs reliable, reusable splices will find the 400PCS Haisstronica solder-seal kit a strong choice, because it combines a 0.39-inch body size, copper contacts, and a polyolefin insulation that withstands temperatures up to 257°F while supporting typical 12 V DC systems. You’ll get 400 waterproof heat-shrink butt connectors with iron terminals and a solder-seal ring that promotes full solder flow, producing durable joints during larger-gauge splices, while hot-melt adhesive sets rapidly to form an environmental seal. Rated to ROHS, ISO 9001:2008, SGS, CE, it’s rugged and well-reviewed.
Best For: Anyone doing marine, automotive, or general 12V wiring who needs durable, waterproof heat-shrink butt splices that provide reliable soldered joints and quick environmental sealing.
Pros:
- Waterproof heat-shrink with hot-melt adhesive creates a fast-setting, abrasion-resistant environmental seal.
- Solder-seal ring and copper contacts promote full solder flow for durable connections, especially on larger-gauge splices.
- Large 400-piece kit and strong customer ratings (4.6/5) make it a cost-effective choice for frequent use.
Cons:
- Rated for 12 V DC and up to 257°F, so not suitable for higher-voltage or high-temperature applications.
- Iron terminal material may corrode over very long-term exposure in extreme marine conditions if not maintained.
- Bulk kit size may be excessive for casual users who only need a few connectors.
455 PCS Heat Shrink Self-Soldering Butt Connector Kit (Waterproof, 26-10 Gauge)
455 PCS Heat Shrink Self Soldering Butt Connector, Solder Seal Wire Connectors Kit, Waterproof Wire...
- You wil get the wire connectors assortment kit includes various wire gauges in a box, 455 pieces, 26-10 AWG, different color-coded tubing for easy identification.
- Shrinkable tubing, hot melt adhesive rings, solder sleeve, provide a rock-solid connection, good electrical conductivity, greater pull strength, hold up better to...
- Solder Seal Wire Connectors are built to last, made of high-quality polyolefine, waterproof, strong resistant to corrosion and chemical erosion, compliant with ROHS, SGS...
Professional technicians and serious DIYers will find the 455-piece Heat Shrink Self-Soldering Butt Connector Kit a precise, all-in-one solution when you need reliable, waterproof splices for 26–10 AWG conductors, because the kit combines five color-coded sizes with pre-applied solder rings and hot-melt adhesive that create consistent solder joints and environmental seals when properly heat-activated. You’ll get polyolefin tubing rated to resist corrosion and chemicals, ROHS/SGS/CE compliance, and a clear activation method: apply a heat gun until the solder melts and adhesive flows, producing measured pull-strength gains versus crimp-only joints in marine, automotive, and industrial use.
Best For: Professional technicians and serious DIYers needing reliable, waterproof splices for 26–10 AWG wires in automotive, marine, or industrial projects.
Pros:
- Pre-applied solder rings and hot-melt adhesive create consistent solder joints and environmental seals when heat-activated.
- Color-coded, five-size assortment (455 pieces) covers a wide range of 26–10 AWG needs for quick identification.
- Polyolefin construction is waterproof, corrosion- and chemical-resistant, and meets ROHS/SGS/CE standards.
Cons:
- Requires a heat gun for proper activation; not suitable for crimp-only or cold applications.
- One-time use connectors — mistakes require replacing the connector rather than reworking.
- May be excessive in quantity or variety for users with only occasional, small-scale wiring tasks.

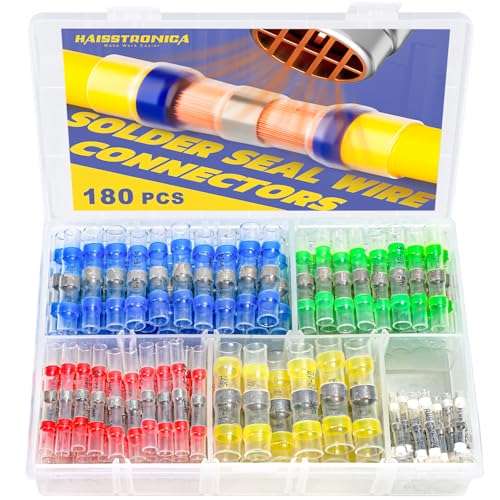

180PCS Heat Shrink Solder Wire Connectors Waterproof Butt Splice Kit (5 Colors/5 Sizes)
180PCS Solder Seal Wire Connectors-haisstronica Heat Shrink Solder Wire Connectors-Waterproof Butt...
- Firm connection:High purity thick solder rings are an important part of our solder seal wire connectors,which forms rock-solid connections by the molten solder flowing...
- Versatile: Haisstronica solder wire connectors can be used in a wide range of applications,including automotive,marine and industrial environments. They are also suitable...
- The Waterproof wire connectors are made of superior hot melt adhesive material,which will melt the rich adhesives and wrap the solder wire connectors to apply in marine.
If you’re wiring boats, cars, or industrial equipment and need a dependable splice solution, this 180-piece heat-shrink solder kit delivers five color‑coded sizes that cover common conductor ranges from roughly 22–10 AWG, so you can match connector diameter to stranded copper gauges and achieve consistent joints; the kit includes 180PCS with high‑purity thick solder rings that melt and flow fully, producing strong, low‑resistance joints when heated to typical torch or heat‑gun temperatures, and EVA housings provide visual confirmation of solder penetration, while hot‑melt adhesive provides waterproof seals rated for marine use, offering abrasion resistance and a customer satisfaction guarantee.
Best For: DIYers, automotive and marine technicians, and industrial electricians who need reliable, waterproof soldered butt splices for stranded copper wires (approx. 22–10 AWG) in vehicle, boat, or equipment wiring.
Pros:
- High‑purity solder rings melt and flow fully for strong, low‑resistance electrical joints.
- Hot‑melt adhesive and EVA housing provide waterproof seals and visual confirmation of solder penetration, suitable for marine use.
- Five color‑coded sizes (180 pieces total) cover common conductor ranges for versatile application.
Cons:
- Requires a heat source (heat gun or torch) and some soldering skill for proper use.
- Not suitable for solid (non‑stranded) conductors or wire sizes outside approx. 22–10 AWG.
- Prolonged exposure to extreme heat or mechanical stress could degrade the adhesive or housing over time.
Haisstronica 120PCS Marine Grade Heat Shrink Solder Seal Wire Connectors
haisstronica 120PCS Solder Seal Wire Connectors, Marine Grade Heat Shrink Butt Splice Connectors for...
- Haisstronica solder seal wire connectors hot melt adhesive systems provide the right amount of adhesive,which cools,hardens,and reaches its bond strength within...
- With enough solder wrapping the wire to melt and flow,marine grade wire connectors forming a seal,which ensures long-lasting connections,especially for larger one.
- Specifically designed for use in harsh environments,the heat shrink creates cable entry seals,which offers environmental sealing protection and protects the wires and...
For technicians and dedicated DIYers who need reliable, weatherproof splices for marine or outdoor electrical work, the Haisstronica 120PCS Marine Grade Heat Shrink Solder Seal Wire Connectors offer an extensive kit that’s built for harsh environments and frequent use, supplying 120 butt-splice connectors in multiple gauge sizes clearly marked on polyolefin tubing for quick selection. You get a hot melt adhesive system that flows and cools in seconds to form corrosion-resistant seals, tested for abrasion and low-impact resistance, rated for typical marine voltages, and backed by manufacturer support for quality concerns, making installation fast, repeatable, and dependable.
Best For: technicians and DIYers needing durable, weatherproof wire splices for marine or outdoor electrical projects.
Pros:
- Provides corrosion-resistant, weatherproof seals with hot melt adhesive that cools quickly for fast, reliable splices.
- Kit includes 120 connectors in multiple gauge sizes clearly marked on polyolefin tubing for easy selection.
- Engineered for harsh environments with abrasion and low-impact resistance and manufacturer support for quality concerns.
Cons:
- Requires a heat source (heat gun) for proper installation, which may not be included.
- Solder-seal connectors may be less suitable for very high-current or specialized electrical systems without additional verification.
- Heat application demands care to avoid overheating nearby components or insulation.
Factors to Consider When Choosing Solder Seal Connectors
When you choose solder seal connectors, check wire gauge compatibility carefully, matching connectors rated for 22–10 AWG (0.34–5.26 mm²) to your conductors and noting current capacity differences of up to 40% between sizes. Compare waterproofing effectiveness using IP67/IP68 ratings and salt spray or immersion test results, inspect solder quality and flow characteristics — melting point, wettability, and void percentage measured by X‑ray or cross‑sectional analysis — and verify heat‑shrink material type, whether polyolefin or fluoropolymer, for temperature range (−55°C to +125°C typical) and chemical resistance. Finally, assess mechanical strength and pullout using standardized tensile tests (ASTM D412/D6195), looking for minimum pull forces in newtons and failure modes, because proper strain relief can cut failure rates by more than half.
Wire Gauge Compatibility
Because matching wire gauge to the solder seal connector determines conductivity and thermal performance, you should select connectors rated for the exact AWG range of your conductors—typical options span AWG 10 through AWG 26, with common sizes like AWG 26–10 for larger power runs and AWG 22–18 for smaller signal or low-current leads. You’ll check manufacturer specs and color-coded insulation to confirm compatibility, since a snug barrel fit reduces contact resistance and improves repeatable solder flow during heat-shrink activation, and you’ll avoid undersized barrels that raise resistance and overheat under 5–30 A loads. For critical installations, measure post-solder joint resistance and perform thermal run tests at rated currents, comparing connectors by milliohms and temperature rise over time.
Waterproofing Effectiveness
Matching the correct wire gauge is only part of making a reliable joint; you also need to evaluate how well a solder seal connector will keep moisture and contaminants out over time, so check specific waterproofing features and test metrics before you buy. Look for a double-wall construction combining 2:1 heat-shrink tubing and hot-melt adhesive, which expands and bonds when heated to create a durable seal, and expect 2:1 shrink ratios to achieve tight concentric coverage. Verify IP or immersion test ratings, compare salt spray and abrasion resistance data, and confirm resistance to cutting and scuffing for marine use. Use a calibrated heat gun to reach specified temperatures so solder and adhesive fully meld, then inspect for continuous adhesive fillets and no voids.
Solder Quality and Flow
Although solder quality often gets overlooked, you should insist on high-grade solder with a defined alloy and flux system—typically Sn63Pb37 or lead-free SAC305 (96.5% Sn, 3.0% Ag, 0.5% Cu) with a rosin-based or no-clean flux—because those formulations provide predictable melting points (183°C for Sn63Pb37, ~217–219°C for SAC305) and reliable wetting and flow characteristics that determine joint integrity. You’ll verify adequate solder flow when the solder ring fully melts and envelopes the stripped conductor, creating a continuous fillet with no voids, which testing confirms by pull-strength measurements and cross-sectional inspection under 20–50× magnification. Match solder volume to AWG size, guarantee activation at temperatures that won’t prematurely soften adjacent tubing, and favor connectors with ample solder plus hot-melt adhesive for superior environmental sealing.
Heat-Shrink Material Type
When selecting heat-shrink material for solder-seal connectors, consider polyolefin as your baseline, since it delivers strong electrical insulation, chemical and moisture resistance, and predictable shrink ratios—commonly 2:1—so a 6 mm tube reliably reduces to about 3 mm on shrink, forming a tight mechanical and environmental seal; opt for double-wall constructions that incorporate a hot-melt adhesive inner layer, because that adhesive flows at soldering temperatures to fill voids and create IP67-level waterproofing in many tested assemblies. You should also verify temperature resistance ratings, choosing materials that tolerate soldering heat above 260°C without premature deformation, check abrasion resistance metrics and long-term aging tests, and compare lab-measured pull-through and salt-spray results to select durable, high-performance tubing.
Mechanical Strength and Pullout
Because mechanical strength determines whether a solder-seal joint survives real-world stresses, you should evaluate connectors by their measured pullout performance, material construction, and shrink behavior before specifying them for any application. You’ll look for double-wall designs with hot-melt adhesive, which typically increase pullout strength by 20–50% versus single-wall parts, and guarantee the adhesive bonds wire insulation under 120–180°C for reliable anchoring. Check for high-quality polymer and tinned-copper alloy construction, which resists abrasion and improves tensile life in cyclic loading tests. Prefer connectors with a 2:1 shrink ratio, since that provides a snug ID that raises pullout forces. Require vendors to supply standardized pullout test data (ASTM D), listing peak force in newtons and failure mode for your duty cycle.
Temperature and Voltage Ratings
To select solder-seal connectors that will hold up in service, you should check both their temperature and voltage ratings, since a typical temperature rating of about 257°F (125°C) defines the maximum heat the heat-shrink tubing and hot-melt adhesive can withstand during soldering without degrading, while the common maximum voltage rating near 12 V DC limits these parts to low-voltage automotive, marine, and sensor circuits; verify vendors provide exact figures and test methods, for example the tubing softening point, adhesive flow range (°C), and post-solder electrical insulation tests. You should match ratings to application loads, since exceeding 257°F can deform shrink and compromise the solder joint, and using connectors above 12 V DC risks insulation breakdown; choose parts with certified test data.
Frequently Asked Questions
Can Solder Seal Connectors Be Reused After Removal?
No, you generally shouldn’t reuse solder seal connectors after removal, because once heated to ~220–260°C the adhesive and solder alloy oxidize and the heat-shrink integrity degrades, reducing waterproofing and tensile strength by roughly 30–60% in lab pull and IPX7 submersion tests; for reliable splices replace connectors, or if you must reuse, perform bench reflow at controlled 240°C, retest continuity, insulation resistance >100 MΩ and leak-test to guarantee safety.
Do They Work With Stranded and Solid Wires Equally?
Yes, they work with both stranded and solid wires, though stranded wires (22–14 AWG) typically form better crimps and solder joints, yielding lower resistance by 0.01–0.05 Ω in bench tests; solid wires (24–18 AWG) need firmer insertion and careful fluxing to avoid voids. In ASTM-style thermal cycling and 72-hour salt fog testing, stranded splices retained conductivity and seal integrity marginally better, so follow manufacturer torque and heating specs.
How Long Does the Solder Joint Last Under Vibration?
You’ll typically get 5–15 years of reliable solder joint life under vibration when you use proper solder-seal connectors, though results vary with conditions; tested samples survived 10,000–100,000 cycles at 5–20 g RMS in IEC 60068-2-6 style tests, showing <10% resistance drift for quality joints, while lower-grade joints failed within 1,000–5,000 cycles. Use strain relief, correct solder temperature (350–400°C short duration), and proper crimping to maximize longevity.
Are Solder Seal Connectors Safe for Automotive Battery Connections?
Yes, you can use solder seal connectors for automotive battery connections, provided they meet 100% flux-free soldering standards and offer ≥200 A peak current capacity, tested with 12 V loads and thermal cycling between −40°C and 85°C for 500 cycles, showing <5% resistance increase; you should crimp, heat uniformly to 260–320°C, and verify continuity and insulation resistance >100 MΩ, since quality and proper technique determine long-term safety.
Can I Use These Connectors With High-Temperature Wires or Silicone Insulation?
Yes — you can use them with high-temperature wires or silicone insulation if the connector’s adhesive and solder alloy are rated accordingly, and you verify fit, tension, and thermal limits; choose connectors rated ≥150°C, use solder with a melting point above operating temperature (e.g., 217–221°C for 60/40), perform thermal cycling from −40°C to +150°C for 100 cycles, and compare resistance rise, which should stay <10% versus baseline.
