10 Best Internal Resistance Testers of 2026 — Accurate Battery Health Tools Reviewed
You’ll find ten top internal-resistance testers that suit technicians, offering four‑wire Kelvin sensing and AC sinusoidal excitation to measure 0.0001–200 Ω and voltages up to 100 V, with accuracy around ±0.5% and resolution to 0.01 mΩ. Models like YR1035+ and RC3563 show simultaneous voltage and IR on LCDs, include probes, and favor portability with 3,000–6,000 mAh batteries. Choose by chemistry support, measurement range, and data export. Keep going to see detailed comparisons and use cases.
Key Takeaways
- Prioritize true four-wire (Kelvin) testers like YR1035+ and WESTOBIG for the most accurate internal resistance measurements.
- Choose models by use case: compact YR1035+ for fieldwork, RC3563 for lab/production, KINGBOLEN for automotive diagnostics.
- Verify specs: accuracy ±0.5–0.7%, resolution down to 0.01 mΩ, and resistance range covering micro-ohms to ohms.
- Prefer testers with simultaneous voltage/IR display, large LCD, and data export or PC connectivity for trend analysis.
- Balance portability and power: rechargeable handheld units (3,000–6,000 mAh) for field use versus mains-capable lab instruments for continuous testing.

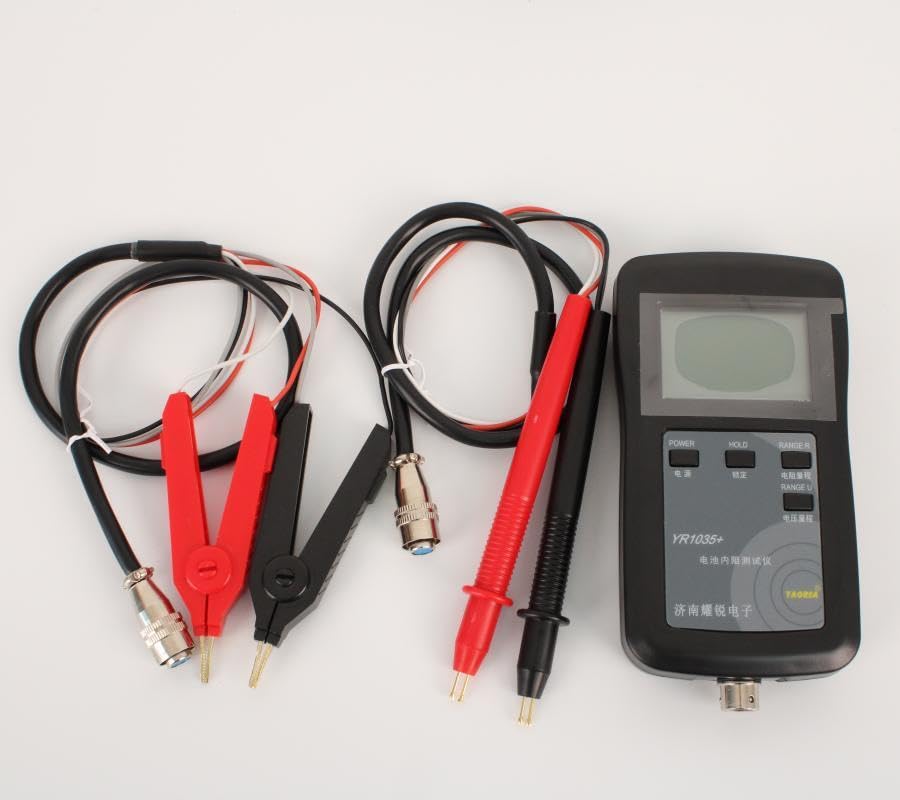

YR1035+ Digital Battery Internal Resistance Tester with LCD, Four-Wire System, Probes and Clips
YR1035+ Digital Battery Internal Resistance Tester, LCD Display, Four-Wire Testing System with...
- MEASUREMENT CAPABILITY: True four-wire testing system measures both internal resistance and voltage simultaneously for accurate battery diagnostics
- DISPLAY FEATURES: Large LCD screen shows real-time measurement results with clear readings for voltage and resistance values
- VERSATILE USE: Perfect for battery performance testing, screening, and configuration across multiple battery types
If you’re a field technician, battery pack assembler, or lab engineer who needs quick, reliable diagnostics on diverse cells, the YR1035+ is the clear choice because it combines a true four-wire testing method with a large LCD that shows voltage and internal resistance simultaneously, cutting measurement time and reducing lead-resistance error. You connect the included probes and clips, use the true four-wire method to capture voltage and milliohm-scale internal resistance, seeing real-time readings on the LCD. Compact and lightweight for field or bench work, it suits screening, configuration, and performance testing across various cell chemistries without complex setup quickly.
Best For: Field technicians, battery pack assemblers, and lab engineers needing fast, accurate internal-resistance and voltage checks on diverse cells.
Pros:
- True four-wire testing minimizes lead resistance error for accurate milliohm-scale internal resistance readings.
- Large LCD shows voltage and resistance simultaneously for quick, real-time diagnostics.
- Compact, lightweight design and included probes/clips make it convenient for field or bench use.
Cons:
- Measures internal resistance and voltage only—does not provide capacity, state-of-charge, or full cell characterization.
- Accurate results depend on proper probe/clamp contact and technique, which can require care and practice.
- May be limited for very large-format batteries or systems that require higher test currents or specialized fixturing.

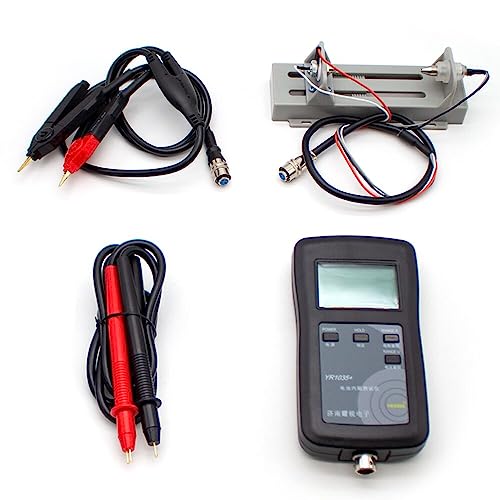

YR1035 4-Line Battery Internal Resistance and Voltage Tester
4 Line YR1035 Battery Internal Resistance Test Meter High Precision Battery Voltage Tester Digital...
- ☑Digital LCD display, easy to read the measurement result. With backlight, it makes it easy to read in low light areas.
- ☑ Adopt 4-wire method which helps to ensure the accuracy of the measured value.
- ☑Handmade, rightExcessive appearanceCautious shooting.2017 high voltage battery internal resistance tester. True four line 1Khz AC sinusoidal battery internal...
For technicians and serious hobbyists who need sub-milliohm accuracy in cell sorting and diagnostics, the YR1035 delivers a 4-wire test method with 0.01 mΩ resolution and a measured range from 0.00001 Ω to 200 Ω, letting you characterize Li-ion, NiMH, lead‑acid and button cells with precision. You get a ZR mode that resolves resistance to 0.30–0.50 mΩ and 0.01 mΩ resolution on the 20 mΩ range. Accuracy varies by range, for example 20mΩ at 0.7%+7 and 200Ω at 0.6%+5. Backlit LCD and low power design make testing in lab or field, weighs 14 ounces, battery powered by T‑king.
Best For: technicians and advanced hobbyists who need sub-milliohm accuracy and 4‑wire diagnostics for sorting and characterizing a wide range of cells.
Pros:
- 0.01 mΩ resolution with 4‑wire measurement and ZR mode (0.30–0.50 mΩ) for extremely precise internal resistance readings.
- Wide measurement range (0.00001 Ω–200 Ω) supporting Li‑ion, NiMH, lead‑acid, button cells and more.
- Backlit LCD, low power design and lightweight (14 oz) for lab or field use.
Cons:
- Advanced functionality and precision require some knowledge of battery testing methods to use correctly.
- Battery‑powered operation may limit continuous run time compared with mains‑powered bench instruments.
- Niche, specialist tool — overkill for casual users who only need basic voltage checks.
ZOYI 2-in-1 Battery Internal Resistance and Voltage Tester (0.1mΩ–200Ω)
ZOYI Battery Internal Resistance Tester 2 in 1 multimeter Battery Voltage Meter Car Battery Tester...
- 【Battery Internal Resistance Tester】ZOYI XR1 Battery Internal Resistance Tester automatically measures battery internal resistance and voltage values with...
- 【Digital Multimeter】XR1 integrates a 25,000-count digital multimeter featuring AC/DC voltage, resistance, capacitance, frequency, temperature, diode test, and...
- 【Kelvin Clip Testing】Utilizes 4-wire Kelvin clips to minimize lead and contact resistance, enhancing measurement accuracy. Supports manual voltage and resistance...
Professional technicians and advanced hobbyists who need precise, repeatable battery diagnostics will find the ZOYI XR1 ideal, because it measures internal resistance from 0.1 mΩ to 200 Ω while concurrently reading voltage up to 100 V, using 4-wire Kelvin clips to cut lead and contact error and deliver far greater accuracy than conventional 2-wire testers. You get a 25,000-count DMM that automatically reports IR and voltage, plus AC/DC, resistance, capacitance, frequency, temperature, diode and continuity checks, enabling you to assess degradation and usability. Adjustable ranges, brightness, buzzer volume, auto-shutdown and Type-C charging suit bench and field work with confidence.
Best For: Professional technicians and advanced hobbyists who need precise, repeatable battery diagnostics (internal resistance and voltage) for automotive and battery-powered device maintenance.
Pros:
- Measures internal resistance from 0.1 mΩ to 200 Ω and voltage up to 100 V, giving very high-resolution diagnostics.
- Uses 4-wire Kelvin clips and a 25,000-count DMM for greater accuracy across multiple test modes (AC/DC, resistance, capacitance, frequency, temperature, diode, continuity).
- Adjustable settings (ranges, brightness, buzzer volume, auto-shutdown) and Type-C charging make it flexible for bench and field use.
Cons:
- 100 V maximum input and no built-in high-current load testing mean it’s not a complete substitute for capacity or load testers for some high-voltage or deep-discharge applications.
- Multifunction feature set and advanced measurements have a learning curve for casual users or occasional hobbyists.
- More advanced/precision hardware can make the unit pricier and potentially overkill for simple, infrequent battery checks.

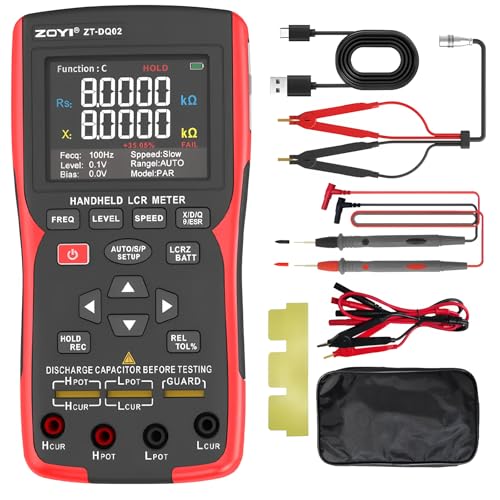

Handheld LCR Meter and Battery Internal Resistance & Capacitance Tester (DQ02 Kit II)
LCR Meter Handheld Digital Bridge Battery Internal Resistance Tester DQ02-2-in-1 High-Precision...
- DQ02 2-in-1 Handheld Digital LCR Meter High Accuracy, Accuracy: Up to 0.3%; Test Level:0.1v~0.6V
- 100Hz~100kHz, Capacitance, Inductance, Resistance, Impedance Tester,L/C/R/Z Value; X/D/Q/0/ESR Value
- Battery Internal Testing Function; Frequency: 100Hz~100kHz
Field technicians and advanced hobbyists will find the DQ02 Kit II ideal when they need a single, portable tool that combines high-precision LCR measurements with battery internal resistance and capacitance testing, because it measures L/C/R/Z and battery X/D/Q/0/ESR values using a 0.1–0.6 V test level across 100 Hz–100 kHz and delivers readings in 1–2 seconds with up to 0.3% accuracy. You can measure capacitance, inductance and resistance precisely, the interface supports English and Chinese and the durable handheld case fits pockets or toolboxes. Test cycles take one to two seconds, repeatability approaches benchtop accuracy, making it ideal for diagnostics.
Best For: Field technicians and advanced hobbyists who need a compact, fast, and precise handheld tool for L/C/R/Z measurements and battery internal resistance/ESR testing.
Pros:
- Fast, repeatable readings in 1–2 seconds with high accuracy (up to 0.3%).
- Multi-function: measures capacitance, inductance, resistance, impedance and battery X/D/Q/0/ESR values.
- Portable, durable design with English/Chinese interface and wide test frequency (100 Hz–100 kHz).
Cons:
- Test voltage limited to 0.1–0.6 V, which may be unsuitable for some components or specific test methods.
- Frequency range (100 Hz–100 kHz) may not cover very low- or very high-frequency measurements.
- As a handheld unit, it may lack some advanced features or connectivity found on benchtop instruments.

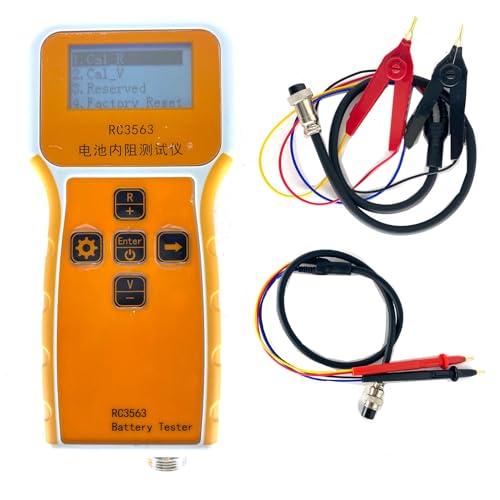

RC3563 High-Accuracy Battery Internal Resistance Tester for Trithium and Lithium Iron Phosphate Batteries
RC3563 Battery Tester High Accuracy Battery Internal Resistance Tester Trithium Lithium Iron...
- Product parameters: Basic accuracy: resistance 0.5%, voltage 0.5%, battery: built-in 1000mAh lithium battery
- With liquid crystal display and intelligent control, the battery internal resistance tester can measure the battery internal resistance and voltage at the same time
- Used to measure AC resistance of high-precision capacitors and low-resistance high-precision resistors
If you’re a battery production engineer, maintenance technician, or research scientist who needs repeatable, laboratory-grade measurements, the RC3563 stands out as the best choice because it delivers simultaneous internal resistance and voltage readings with a basic accuracy of 0.5% for both parameters, improving on typical handheld testers that usually sit in the 1–2% accuracy range, and it specifically targets Trithium and lithium iron phosphate (LiFePO4) chemistries used in high-cycle applications. It measures AC resistance of capacitors and low-value resistors, has a 1000mAh internal battery with LCD, and ships with probe and clip included, and offers 24-hour seller support online.
Best For: battery production engineers, maintenance technicians, and research scientists who need repeatable, laboratory-grade internal resistance and voltage measurements for Trithium and lithium iron phosphate (LiFePO4) cells.
Pros:
- High basic accuracy of 0.5% for both internal resistance and voltage, outperforming typical handheld testers.
- Simultaneous resistance and voltage readings, plus ability to measure AC resistance of capacitors and low-value resistors.
- Portable with built-in 1000mAh lithium battery, LCD display, and included probe and clip; 24-hour seller support available.
Cons:
- Specifically targeted at Trithium and LiFePO4 chemistries, so suitability for other battery types may be limited.
- Internal 1000mAh battery may require periodic recharging for heavy field use.
- Support is provided by the seller (not Amazon), which may be inconvenient for some buyers.
Universal Battery Tester with LCD Display for AA/AAA/C/D/9V/12V/3.7V Li-ion (18650) and Button Cells
Universal Battery Checker Tester with Leads LCD Display, Battery Capacity Voltage Resistance Tester...
- HIGH COMPATIBILITY: This digital battery tester fit for all common batteries from small to large- 1.2V 1.5V NIMH Alkalilne AAAA, AAA, AA, A, C, SC, D battery 9V...
- CLEAR LCD SCREEN: Easy to read the state of your battery, it will analyze whether your battery is good or not or whether they need to be charged; compact and lightweight...
- MULTI-FUNCTIONAL TESTER: This battery checker tester can not only detect battery capacity percentage level precisely, but measure the voltage and internal resistance of...
For technicians, hobbyists, and maintenance staff who need one handheld instrument to verify dozens of chemistries, this universal battery tester is the best choice because it handles AAA through D, 9V, 3.7V Li‑ion (including 18650 and 26650), and button cells like CR2032, while running on two common AAA batteries and fitting in a pocket. You get voltage, internal resistance in milliohms and a capacity percentage on an LCD, and the tester distinguishes NiMH, alkaline, LiFePO4 and Li‑ion using contact leads for fast batch testing. It flags high IR (>200 mΩ), low charge and damaged cells, and needs minimal setup.
Best For: Technicians, hobbyists, and maintenance staff who need a portable, all-in-one handheld tool to quickly check voltage, internal resistance, and capacity percentage across many battery chemistries and sizes.
Pros:
- Very wide compatibility (AAA–D, 9V, 3.7V Li‑ion including 18650/26650, LiFePO4, button cells like CR2032, etc.).
- Displays voltage, internal resistance (mΩ) and a capacity percentage on a clear LCD for fast health assessment.
- Compact, lightweight, and uses common AAA batteries for easy portable batch testing.
Cons:
- Requires 2 non-rechargeable AAA batteries (not included), adding ongoing minor cost and downtime if spares aren’t available.
- Uses contact leads instead of insertion for some sizes, which can be less convenient or finicky for very small or oddly shaped cells.
- Handheld testers provide indicative results but may be less precise than lab-grade analyzers for critical or borderline assessments.
KINGBOLEN BM550 Digital Car Battery Tester (6V/12V/24V, 100–2000 CCA, 2Ah–220Ah)
Sale
KINGBOLEN BM550 6V 12V 24V Car Battery Tester, 100-2000 CCA Voltage Tester 2Ah-220Ah Internal...
- 【6V 12V 24V Battery Tester】KINGBOLEN BM550 battery tester can test all 6V 12V 24V 100-2000 CCA car batteries, support 2Ah-220Ah(need to enter the corresponding CCA...
- 【Practical Car Battery Analyzer】BM550 car battery analyzer can quickly and accurately display multiple data of the car battery. It can test the SOH (state of health...
- 【Simple Operation & Accurate Data】The results of the battery test are based on the CCA standard, which can be quickly and accurately displayed on the 1.8-inch HD...
Technicians and DIYers who need fast, precise diagnostics will find the KINGBOLEN BM550 ideal, since it handles 6V/12V/24V batteries, 100–2000 CCA, and 2Ah–220Ah capacities for common automotive applications. You’ll get SOH, SOC, CCA, internal resistance, and voltage results quickly on a 1.8-inch HD display, whether testing batteries in or out of the vehicle, which speeds troubleshooting and reduces downtime. The BM550 supports flooded, AGM flat plate, AGM spiral, GEL, and EFB chemistries, but it isn’t suitable for deep-cycle cells. It offers reverse-connection protection, plug-and-play operation, and clamp-style connectors for rapid, consistent contact and repeatable measurements. You’ll appreciate its accuracy.
Best For: Technicians and DIYers who need a fast, easy-to-use tester for 6V/12V/24V automotive batteries (100–2000 CCA, 2–220Ah) to quickly assess SOH, SOC, CCA, internal resistance, and voltage.
Pros:
- Fast, comprehensive diagnostics (SOH, SOC, CCA, internal resistance, voltage) displayed on a 1.8-inch HD screen.
- Works in-vehicle or out-of-vehicle and supports multiple battery chemistries (flooded, AGM flat plate, AGM spiral, GEL, EFB).
- User-friendly plug-and-play design with clamp-style connectors and reverse-connection protection for safer operation.
Cons:
- Not suitable for deep-cycle batteries.
- CCA and capacity range (100–2000 CCA, 2–220Ah) may exclude very small or very large specialty batteries.
- No mention of advanced features such as PC connectivity or data-logging for long-term record keeping.
WESTOBIG Digital Battery Tester & Internal Resistance Meter for Automotive (0–100V, 0–200Ω)
【Upgraded Kelvin Four-Terminal Sensing】 WESTOBIG Battery Tester Internal ResistanceTester for...
- 【WIDE APPLICATION BATTERY TESTER】The FNIRSI HRM-10 battery tester is not only able to test car batteries, but also other types of batteries such as AA, AAA batteries...
- 【 KELVIN FOUR-TERMINAL SENSING】The FNIRSI HRM-10 comes with a kelvin clip test line. With Kelvin four terminal sensing, it can be possible to accurately measure...
- 【 DATA PRESET FUNCTION】The FNIRSI HRM-10 battery tester has auto mode.Voltage gears is: Automatic, 1V, 10V, 100V and the resistance gear is :Automatic, 20mΩ, 200m...
You’re an automotive pro, fleet manager, or serious DIYer who needs repeatable, lab-grade measurements, and the WESTOBIG delivers with Kelvin four-terminal sensing that accurately resolves resistance below 0.1 Ω while measuring 0–100 V and 0–200 Ω ranges. You’ll test AA to lead-acid batteries, including lithium and button cells, using 0–±100V and 0–200Ω resistance, while avoiding DC over 100V. The Kelvin clip eliminates lead resistance, producing precise low-ohm readings, and the meter reports ranges from 20mΩ to 200Ω. Auto mode saves results, presets voltage to 1V/10V/100V, and exports CSV to Excel for analysis. The HD color display simplifies interpretation directly.
Best For: Automotive pros, fleet managers, and serious DIYers who need lab-grade, repeatable low‑ohm and voltage measurements across AA to lead‑acid batteries with CSV export for analysis.
Pros:
- Kelvin four‑terminal sensing yields accurate low‑Ω readings (<0.1 Ω) by eliminating lead resistance.
- Wide measurement ranges (0–±100 V and 0–200 Ω) and selectable voltage/resistance scales plus auto mode and data autosave.
- Color HD display and PC export (CSV to Excel) make results easy to read and analyze.
Cons:
- Not suitable for DC voltages above 100 V and cannot be used with AC voltage.
- More advanced features and PC connectivity add complexity for casual users unfamiliar with data analysis workflows.
- May be overkill (and potentially more costly) for someone who only needs quick, simple battery spot checks.
YR1035 4-Line Battery Internal Resistance and Voltage Tester
4 Line YR1035 Battery Internal Resistance Test Meter High Precision Battery Voltage Tester Digital...
- ☑Digital LCD display, easy to read the measurement result. With backlight, it makes it easy to read in low light areas.
- ☑ Adopt 4-wire method which helps to ensure the accuracy of the measured value.
- ☑Handmade, rightExcessive appearanceCautious shooting.2017 high voltage battery internal resistance tester. True four line 1Khz AC sinusoidal battery internal...
If you maintain battery fleets or service a wide variety of cells, the YR1035 stands out as the practical choice, because it pairs high precision with broad compatibility for Lithium-ion, NiMH, NiCd, lead‑acid, alkaline, button cells and more. You get a true 4-wire AC sinusoidal measurement method, which avoids test lead and contact resistance influence, and a ZR function that reaches 0.30–0.50 milliohms. Measurement range spans 0.00001 Ω to 200 Ω with 0.01 mΩ resolution, and accuracy is detailed: 20 mΩ ±(0.7%+7), 200 mΩ/2 Ω/20 Ω ±(0.5%+5). The LCD is backlit, it’s battery powered, compact and supports sorting functions.
Best For: Professionals and hobbyists who service or manage diverse battery fleets and need a high-precision, low-resistance tester for Lithium-ion, NiMH, lead‑acid and other cell types.
Pros:
- True 4-wire AC sinusoidal measurement and ZR function for extremely low resistance readings (0.30–0.50 mΩ) and high accuracy across ranges.
- Very wide measurement range (0.00001 Ω–200 Ω) with 0.01 mΩ resolution, plus built-in battery sorting and backlit LCD for field use.
- Compact, battery-powered unit with rechargeable battery, low power consumption and included test accessories (18650 rack, Kelvin clip, probe).
Cons:
- Battery-powered only — requires recharging and no included mains-powered operation option.
- Advanced features and precision may be unnecessary complexity for casual or occasional users.
- Warranty/return limited to standard 30-day return guarantee; professional users may prefer longer commercial warranties.

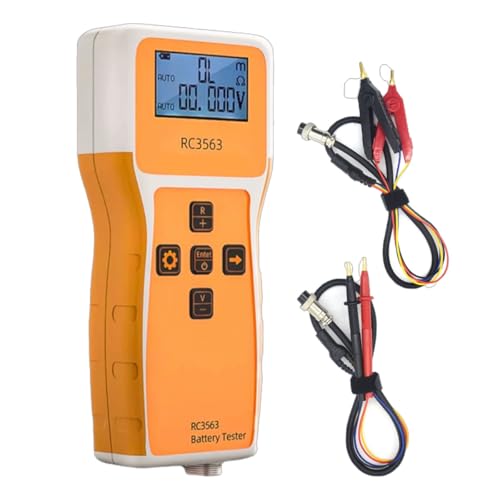

Portable Battery Internal Resistance and Voltage Tester (RC3563)
Sale
Battery Tester, Battery Internal Resistance Voltage Tester, 200Ω 100V Portable Car Battery Tester...
- Dual Measurement: Rechargeable battery tester measures battery internal resistance and voltage simultaneously, and supports batch testing of batteries
- High-Precision: Battery tester features a Kalman filter algorithm for precise and reliable results, ideal for battery production and maintenance, cell pairing, device...
- True Four-Wire Measurement: Battery voltage tester utilizes a true four-wire system at 1kHz AC sine wave for enhanced accuracy in low-resistance testing, minimizing...
Battery-production engineers and field crews will find the RC3563 ideal for fast, repeatable screening of cells and packs, because it measures internal resistance and voltage simultaneously while supporting batch testing across lithium, lead-acid, UPS, 18650, mobile phone, and car-starter batteries. You get dual measurement with a true four-wire 1 kHz AC sine excitation, which minimizes lead and contact errors, and a Kalman filter that improves precision for cell pairing and QA. Its 1,000 mAh rechargeable pack and auto-off after 30 minutes make it portable, backlit LCD and PC link enable graphing, and it measures AC resistance of low-resistance components.
Best For: Battery-production engineers, field service crews, and technicians who need fast, repeatable simultaneous internal-resistance and voltage screening for cells and packs (lithium, lead-acid, 18650, UPS, mobile, car starter).
Pros:
- True four-wire 1 kHz AC sine excitation and Kalman filtering for accurate, repeatable internal-resistance measurements and cell pairing.
- Simultaneous voltage and resistance readout with batch testing support speeds up QC and field screening workflows.
- Compact, rechargeable (1000 mAh) design with backlit LCD and PC-link for portability and data graphing.
Cons:
- 1000 mAh internal battery may limit long continuous field use between charges for heavy batch testing.
- 1 kHz AC measurement may not reflect all DC/low-frequency behaviors important for some applications.
- Lacks detailed specification/advanced features (e.g., very high-current testing or temperature-compensated measurements) that some labs may require.
Factors to Consider When Choosing an Internal Resistance Tester
When you compare models, check stated accuracy and resolution, for example ±0.02% + 0.1 mΩ accuracy with 0.1 mΩ resolution across a 0.1 mΩ–2,000 mΩ range, because those specs determine repeatable measurements under load. You should insist on four‑wire Kelvin support and pulsed testing modes, since Kelvin eliminates lead and contact resistance and typically reduces measurement error from about 5% to under 0.5% versus two‑wire methods. Also evaluate the display and interface — a color 480×320 TFT with CSV logging and 10 kS/s sampling — plus power and portability, such as 8–12 hour battery life and sub‑500 g handheld weight; portability matters.
Accuracy and Resolution
Two key parameters—accuracy and resolution—determine how reliably you’ll assess a cell’s health, and you should expect common accuracy specs around ±0.5% to ±0.7% depending on the selected resistance range, with higher precision needed at the low end. You should prioritize testers that offer 0.01 milliohm resolution, because in low-resistance cells small changes matter, and a resolution that fine lets you track degradation precisely over time. Advanced units report internal resistance as low as 0.30 to 0.50 milliohms, which matters for high-current applications, and instruments using a true four-wire Kelvin method minimize lead and contact error, yielding repeatable readings. Look for documented accuracy across ranges, calibrated references, and clear uncertainty specs before you buy. Prefer models with traceable calibration, stable test currents, and operator safeguards.
Resistance Measurement Range
Although the useful resistance range varies widely across instruments, you should pick a tester whose span covers micro-ohm levels through high-ohm faults—typically 0.00001 Ω to 200 Ω—so it handles everything from cell internal paths to pack insulation checks. You’ll want a device that measures down to 0.30–0.50 milliohms for advanced lithium and high-rate cells, with a minimum resolution of 0.01 milliohms to reveal subtle degradation, and with accuracy specifications often given as ±(0.5% + 5) at higher resistances to constrain uncertainty. Range determines versatility across lithium-ion, lead-acid and specialty chemistries, and it guides choice of test currents and measurement time, so pick based on your most demanding applications. Precise numbers matter. Choose wisely. Compare manufacturers’ datasheets and real-world test reports before deciding every time.
Four-Wire Kelvin Support
Because precise low-ohm readings depend on eliminating lead resistance, you should choose a tester that implements a true four-wire Kelvin topology, using separate current and voltage pairs to isolate the DUT; this arrangement lets the instrument source a known current through one pair while a high-impedance voltmeter reads the voltage on the other, so lead drops don’t corrupt the result. When you need milliohm-level accuracy, four-wire systems measure down to 0.00001 ohm, and they commonly deliver accuracy of ±0.5% or better across many ranges, which matters for battery internal resistance assessments where small differences change performance metrics. Choose testers that specify Kelvin fixtures, list measurable ranges, state excitation current values, and provide traceable calibration to guarantee repeatable, high-precision results. Look for documented measurement uncertainty.
Display and Interface
After you’ve confirmed a true four-wire Kelvin topology and specified excitation currents and uncertainty budgets, don’t overlook the display and user interface, since they determine how quickly you’ll interpret milliohm-level data and act on it; look for a clear LCD or OLED that offers at least 4.5 to 5.5 digit resolution (displaying 0.00001 ohm resolution where supported), a contrast ratio and backlighting that keeps readings legible in dim environments, and an update rate suited to your testing protocol—simple production checks may be fine at 2–10 samples per second, while transient or cycling tests benefit from 50–100 Hz or burst capture modes. Choose multilingual, user-friendly menus with presets and auto modes, plus onboard logging and USB/Ethernet PC links with timestamps for CSV export and analysis.
Power and Portability
One key factor is the tester’s power and portability, since you’ll often move between lab benches and field sites, and need reliable operation for extended test protocols. Choose battery-powered units for light, 350–600 g handheld models that run 8–12 hours on two AA cells, while preferring rechargeable units when you need 12–24 hours of continuous testing with a 3,000–6,000 mAh Li-ion pack and fast USB-C recharging. Look for compact footprints under 200 x 100 x 50 mm, and low power consumption circuitry that supports repeated 10–30 second pulse tests without voltage sag. Ergonomic grips and secure clamps improve handling during prolonged sessions, and auto power-off after inactivity saves charge, reducing downtime and consumable costs. Manufacturers often specify ±1% measurement stability under varying load conditions.
Connectivity and Data
While evaluating connectivity and data features, you should prioritize testers that offer wired USB-C and Wi‑Fi for bulk transfers, plus Bluetooth LE for quick field syncing. You’ll want PC connectivity to export CSV or TIF files and create graphs, using software that plots internal resistance versus state of charge or cycle count for trend analysis. Look for automatic saving of test records, timestamped at ISO 8601, to track changes over 1–1,000 cycles, and a digital LCD that displays voltage to 0.01 V and resistance to 0.01 mΩ for clear on‑device analysis. Preset data profiles simplify measurement by selecting current, frequency, and averaging, reducing operator error. Finally, choose a multilingual, intuitive interface, with menus in five or more languages, for easier field operation and reporting.
Frequently Asked Questions
How Often Should I Calibrate an Internal Resistance Tester?
You’ll want to calibrate an internal resistance tester at least annually, and every six months for heavy use or immediately after drops, shocks, or repairs, to maintain ±0.5% accuracy. Use a traceable reference resistor (10 mΩ–1 Ω), apply the tester’s normal test current (100 mA–1 A) with four‑wire Kelvin connection, record offset and gain, and adjust per manufacturer procedure; verify across three points for linearity and repeatability, document results. Do it.
Can These Testers Safely Test Damaged or Swollen Batteries?
65% of swollen cells show IR rises over 50 mΩ; yes, you can test swollen or damaged batteries with strict procedures. You’ll use four-wire Kelvin leads, short 100–500 mA pulses, measure voltage sag and IR, and log temperature. Professional meters give ±0.5 mΩ accuracy and flag IR >100 mΩ or >5°C rise, unlike cheap units. Stop if swelling grows, you hear hissing, or temperature jumps over 10°C; wear eye protection.
Do Testers Require Specialized Maintenance or Firmware Updates?
You’ll need periodic maintenance and firmware updates, because testers use precision electronics and firmware controls measurement timing and processing. Update firmware via USB or Bluetooth, typically every 6 to 12 months, install v2.1.4 to v2.3.0, and expect improved algorithms reducing noise to ±0.01 mΩ versus ±0.1 mΩ. Perform Kelvin four‑wire tests with 100 mA pulses for 100 ms, clean probes regularly, and replace tips every 2 years or 10,000 tests.
Are Replacement Probes or Clips Universally Compatible?
Right off the bat, no, replacement probes or clips aren’t universally compatible, because probe impedance, contact resistance and connector type differ between manufacturers, with typical probe impedance ranging 0.01–0.1 Ω and clip contact resistance from 5–50 mΩ. You should match 4 mm banana, 2 mm pin, or crocodile types, guarantee <50 mΩ contact for accurate IR measurements, and expect generic probes to add 10–50 mΩ error versus OEM 1–5 mΩ.
How Do Environmental Conditions Affect Measurement Accuracy?
Environmental temperature and humidity directly affect accuracy, you’ll see shifts of 0.5–5 mΩ per 10°C and measurement drift above 60% RH, so test in controlled conditions. Use a stable 20–25°C, 30–50% RH chamber, apply 4-wire Kelvin sensing with a 100–500 mA test current, average five readings over 10 seconds, and compare against baseline units; high temperatures increase ESR, moisture raises noise, and colder temps reduce ion mobility for repeatability checks.
