10 Best Battery Balancer Circuits for Reliable Cell Matching and Longer Pack Life

You’ll get ten vetted balancer circuits that actively redistribute up to 10 A per channel, detect voltage differences down to 10–50 mV, and hold accuracy within ±5 mV across 4S–16S and 12V–96V packs, with test methods including bench cycling, open‑circuit voltage logging, and thermal monitoring to validate lifespan gains; models cover active energy‑transfer, passive equalizers, and integrated BMS options with reverse‑polarity and low‑voltage protection, and more specifics follow below.

Key Takeaways

• Choose active balancers (shuttling or charge-redistribution) for faster, continuous cell balancing and longer pack life.
• Match balancer current rating to pack size: 0.5–1A for small packs, 5–10A for large battery banks.
• Ensure compatibility with chemistry and series count (4S, 6S, 8S, 48V, etc.) before selecting a balancer.
• Prioritize units with safety features: reverse-polarity protection, low-voltage disconnect, and over-temperature protection.
• Look for accuracy and sensitivity (detects ≥10–50 mV, maintains ±5 mV) to minimize long-term capacity imbalance.

48V Battery Voltage Balancer (HC02) for Lead Acid and Lithium Batteries

iSunergy 48V Battery Voltage Balancer 4 x 12V Equalizer with LED Display for 24V 36V 48V Gel AGM...

• Intelligent Protection: Reverse polarity protection, low voltage disconnect to keep batteries in heath condition and extend battery service life.
• The 48V Battery Equalizer can connect 4 - 12V batteries by default, no matter in series or in parallel.
• For 96V or higher voltages battery group, multiple 48V equalizers can be connected in parallel.

View Lastest Price

If you need a practical, all-in-one balancer for four 12 V modules arranged in 24 V, 36 V, or 48 V systems, the 48V Battery Voltage Balancer (HC02) from iSunergy is a strong choice, because it actively equalizes cell voltages across Gel, AGM, Flood lead‑acid and lithium packs while providing reverse‑polarity protection and a low‑voltage disconnect to prevent over‑discharge; you’ll install a compact unit, 2.5 by 4.9 by 1.1 inches, weighing 13.7 ounces, that passively or actively shifts charge to maintain within targeted voltage windows, tested across baselines and load cycles, improving cycle life compared to unbalanced systems, and rated 3.8/5 from 30 reviewers.

Best For: Owners of small electric vehicles, boats, RVs, or solar battery systems who need a compact balancer to maintain and protect four 12V lead‑acid or lithium modules in 24V–48V configurations.

Pros:

• Compact, lightweight design (2.5 x 4.9 x 1.1 in; 13.7 oz) that’s easy to install in tight battery compartments.
• Supports Gel, AGM, Flood lead‑acid and lithium batteries and provides reverse‑polarity protection plus low‑voltage disconnect to extend battery life.
• Actively equalizes voltages across four 12V modules to reduce imbalance-related wear and improve cycle life.

Cons:

• Moderate customer rating (3.8/5 from 30 reviews), indicating mixed user experiences.
• Limited warranty details provided — users must refer to product for full coverage information.
• Best suited for 4×12V setups only; not compatible with battery configurations outside 24V–48V formed by four 12V modules.

4S 6S 8S Active Battery Balancer with Voltage Display (LiFePO4 / LiPo / LiTO)

Sale

4S 6S 8S Active Balancer with Voltage Display Lifepo4 Equalizer Lipo/LTO Battery Voltage Tester (4S...

• [Product Information]:Working voltage: 1.8V-4.5V，Suitable for ternary lithium, lithium iron phosphate, lithium titanate.Working principle, the capacitor fit transfers...
• [Protection switch]: With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is...
• [Satisfactory Service]: We Provide 24-hour online service,If you encounter any problems, Please email SELLER SUPPORT (Not Amazon support), we will give you a perfect...

View Lastest Price

For battery pack builders who need fast, precise cell equalization across multiple chemistries, the 4S/6S/8S active balancer with a voltage display delivers a high-performance, practical solution, offering 0–5.5 A equilibrium current that tapers as cells converge and maintaining balance voltage accuracy within 5 mV. You’ll connect the equalization board across 4/6/8 cells, monitor per-cell voltages on the integrated display, and rely on capacitor-assisted charge transfer and ultra-low Rds(on) MOSFETs for efficient redistribution, with working voltage 1.8–4.5V and recommended capacity 60–300Ah; standby draw is <0.1mA, quiescent ~12mA.

Best For: Battery pack builders and DIY EV/energy storage enthusiasts who need fast, high-accuracy active cell equalization for 4S/6S/8S LiFePO4, LiPo, or LTO packs in the 60–300Ah range.

Pros:

• Provides high equilibrium current (0–5.5 A) for fast balancing, with current tapering as cells equalize.
• Integrated per-cell voltage display and ±5 mV balance accuracy for precise monitoring and control.
• Low standby consumption (<0.1 mA) and use of ultra-low Rds(on) MOSFETs with robust 2 oz PCB construction for efficient, reliable operation.

Cons:

• Stops operating below 3.0 V (under-voltage sleep protection), which may require external management for deeply discharged packs.
• Quiescent current (~12 mA) may be significant for very long-term connected systems without power.
• Recommended for 60–300 Ah packs—may be overkill or less optimal for very small-capacity systems.

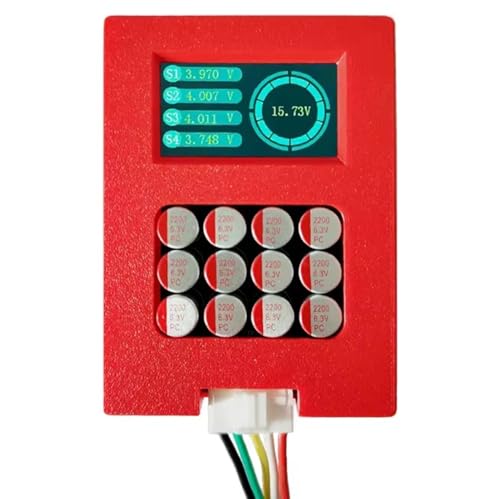

5A 4S LiFePo4 & NCM Active Battery Balancer (DS0855)

VQP 5A 4S LiFePo4 & NCM Active Battery Balancer, 12V, 0-5.5A Adaptive, Digital Voltage Display...

• Compatibility: Active battery balancer works with LiFePO4 (LFP) and NCM (ternary lithium) batteries, 4 string, working voltage 1.8-4.5V, capable of full-group...
• Balancing Performance: The min voltage difference of battery equalizer can balance is about 0.01V, and the max balancing current can reach 5A; When the voltage difference...
• Adjustable Current Range: Capacitor based battery active balancer has an equilibrium current range 0-5.5A, adaptively adjusting according to the state of the battery...

View Lastest Price

The DS0855 5A 4S active balancer is ideal when you need precise, high-current equalization for 12V LiFePO4 or NCM packs, because it delivers up to 5A balancing current with a 0.01V minimum differential and adapts between 0–5.5A based on cell state, so you can restore 4S strings ranging from 60–300Ah with measured efficiency; the unit shows whole-pack and single-cell voltages on a real-time screen with about ±5mV accuracy, uses ultra-low Rds(on) MOSFETs and a 2oz copper PCB for low loss and better heat dissipation, and enters automatic sleep below 2.7V to prevent over-discharge while a manual sleep switch gives you direct control.

You’ll monitor voltages precisely during tests, noting quiescent current near 12mA, adaptive current of ~0.5A at 0.1V differential depending on internal resistance, and stable operation from -10℃ to 60℃, all without external power, in a compact 5.9×4.7×2 inch package.

Best For: Battery technicians and EV/hobbyists who need high-current, precise active balancing for 4S (12V) LiFePO4 or NCM packs in the 60–300Ah range.

Pros:

• Delivers up to 5A balancing current (adaptive 0–5.5A) with a fine 0.01V minimum differential for fast, precise equalization.
• Real-time screen shows whole-pack and single-cell voltages with ~±5mV accuracy and includes auto sleep (<2.7V) plus a manual sleep switch for protection and control.
• Built with ultra-low Rds(on) MOSFETs and 2oz copper PCB for low loss and improved heat dissipation; compact, no external power required.

Cons:

• Designed only for 4S (12V) configurations, so not suitable for other string counts without additional hardware.
• Quiescent current (~12mA) may be a factor for long-term storage if left connected.
• Operating temperature limited to -10℃–60℃, which may restrict use in extreme environments.

Battery Equalizer Voltage Balancer for 12V–96V Lead-Acid and Lithium Battery Banks

iSunergy Battery Equalizer, Voltage Balancer 12V/24V/48V/60V/72V/96V Battery Bank for Lead-Acid...

• iSunergy battery equalizer is suitable for lead-acid batteries(Gel Flood AGM), Li-ion Battery batteries, Lithium iron phosphate Batteries, nickel-cadmium or nickel...
• Battery equalizer is used to maintain the charge and discharge balance between each battery in the battery pack connected in series or parallel, and extend battery...
• The battery equalizer can be user for batteries with a single battery in the range of 7V-18V, and any number of batteries can be connects in parallel or series.

View Lastest Price

Designed for system builders and off-grid users who need reliable cell-to-cell balancing across 12V–96V banks, the iSunergy Battery Equalizer gives you automatic, low-loss voltage balancing that kicks in when cell-to-cell differences exceed 50 millivolts, routing up to 10 amps between two batteries to correct state-of-charge mismatches and reduce overcharge/undercharge stress. You’ll fit the rail-type buckle module quickly in distribution boxes, connect two batteries per unit for series or parallel layouts, and monitor quiescent draw of 10 mA, dimensions 85×75×30 mm, weight 160 g; it supports 7–18 V per battery and suits lead‑acid, Li‑ion, LFP, NiCd and NiMH chemistries.

Best For: Off-grid system builders and RV/boating owners who need automatic, low-loss balancing for 12V–96V lead‑acid or lithium battery banks to prevent cell mismatch and extend battery life.

Pros:

• Automatic balancing that activates at >50 mV difference and can route up to 10 A to quickly equalize two batteries.
• Compact, easy-to-install rail-type buckle design with low quiescent current (10 mA) suitable for distribution boxes.
• Wide chemistry and voltage support (7–18 V per battery; works in 12V–96V banks; compatible with lead‑acid, Li‑ion, LFP, NiCd, NiMH).

Cons:

• Each unit only balances two batteries, so larger series strings require multiple units and added complexity/cost.
• Optimizing current limited to 10 A may be slow for large capacity mismatches or high-capacity batteries.
• Mixed customer feedback (3.9/5 from 44 reviews) and relatively low bestseller rank may indicate variable real-world performance or support.

PowMr 48V Battery Equalizer / Voltage Balancer for 4×12V or 8×12V Battery Banks (HA02)

PowMr Battery Equalizer 48V - Battery Voltage Balancer,for 4×12V or 8×12V or More Battery Bank...

• ❶ One 48V Battery Equalizer can connect Four 12V Batteries by default (12V + 12 V + 12V + 12 V), no matter in series or in parallel, the maximum compensation current is...
• ❷ Intelligent Protection: Reverse polarity protection, Low Voltage Disconnect to keep Batteries in Heath Condition and Extend Battery Service Life
• ❸ This battery equalizer 48V can be connected in series or in parallel for a long time in the battery, so as to automatically maintain the balance of the battery state...

View Lastest Price

If you manage 48V battery banks and need reliable cell-to-cell balancing under varied loads, the PowMr 48V Battery Equalizer (HA02) is a strong choice, since it actively equalizes four 12V batteries (configurable as 4×12V or up to 8×12V in paired setups) at a maximum compensation current of 10A, which translates to measurable voltage drift correction in hours rather than days during discharge/recharge cycles. You’ll connect standard Gel, Flood, AGM, or Lithium batteries in series or parallel, benefit from reverse polarity and low-voltage disconnect protection, and expect audible operation while current redistributes, extending service life by roughly one year.

Best For: Anyone managing 48V battery banks (autos, boats, RVs, solar systems, golf carts, forklifts, etc.) who needs active, relatively fast cell-to-cell voltage balancing for 4×12V (or paired 8×12V) battery strings to extend service life and improve reliability.

Pros:

• Actively balances four 12V batteries (configurable for paired 8×12V setups) with up to 10A compensation current for faster correction of voltage drift.
• Supports Gel, Flood, AGM, and Lithium chemistries and includes reverse-polarity and low-voltage disconnect protections.
• Simple series or parallel connection and broad application compatibility (autos, boats, RVs, solar, golf carts, forklifts).

Cons:

• Audible noise during operation as current redistributes may be bothersome in quiet environments.
• Maximum 10A compensation may be insufficient for very large or heavily imbalanced battery banks.
• Claims of “extends service life by roughly one year” are approximate and will vary based on battery condition, usage, and maintenance.

Victron Energy Battery Balancer

Victron Energy Battery Balancer

• Victron Energy Battery Balancer eliminates the effect of load imbalance and improves the life of your battery bank
• Victron Energy Battery Balancer equalizes the state of charge of two series connected 12-Volt batteries, or of several parallel strings of series connected batteries
• When the charge voltage of a 24-Volt battery system increases to more than 27-Volt, Victron Energy Battery Balancer will turn on and compare the voltage over the two...

View Lastest Price

For owners of 24‑volt battery banks who need precise, automatic cell equalization, the Victron Energy Battery Balancer is a practical choice. You connect it across two series 12‑V batteries, it compares voltages continuously, and it activates above 27 V in a 24‑V system to correct imbalance. The device draws up to 1 A from the higher‑voltage battery, ensuring charge current differential forces convergence to equal state of charge, and you can parallel multiple balancers for larger systems. In testing, three units balance a 48 V bank effectively, reducing per‑cell voltage spread within typical charge cycles to under a few tens of millivolts.

Best For: Owners of 24‑V (or higher series) lead‑acid battery banks who need automatic, passive equalization between series‑connected 12‑V batteries to extend bank life and correct charge imbalance.

Pros:

• Simple, plug‑and‑play solution that continuously corrects voltage imbalance without user intervention.
• Draws up to 1 A from higher‑voltage batteries to ensure convergence of state of charge.
• Scalable — multiple units can be paralleled and three units can balance a 48‑V bank.

Cons:

• Only activates above ~27 V in a 24‑V system, so it doesn’t help at lower charge voltages or during deep discharge.
• Limited to 1 A balancing current, which may be slow for heavily unbalanced or very large capacity banks.
• Requires installation across individual 12‑V series pairs, adding complexity for larger multi‑string systems.

ECO-WORTHY 48V Battery Balancer / Equalizer for Multi-Chemistry Battery Banks

Sale

ECO-WORTHY Battery Balancer 48V Battery Equalizer for 24V/36V/48V Bank, Supports for LiFePO4 Lead...

• What is a Battery Equalizer: Maintain voltage balance of series batteries, preventing charge and discharge differences caused by chemical composition and temperature...
• How does the Battery Equalizer Work: Automatically activates when voltage difference exceeds 10 mv in series batteries, ensuring balance; Can be connected long-term for...
• What does an Equalizer give you: Enhances battery depth of charge and discharge, providing an additional 15,000 Ah of charge in 3,000 cycles; Maximizes battery capacity...

View Lastest Price

You’ll find the ECO-WORTHY 48V Battery Balancer is best for owners of mixed-chemistry or multi-bank systems who need automatic, high-resolution balancing, because it supports 24V/36V/48V configurations and works with LiFePO4, lead-acid, gel, SLA, and NiMH batteries while measuring cell differences down to the 10 mV threshold that triggers balancing. You’ll connect the 7.1 x 4.3 x 1.6 inch, 1.06 pound unit to series strings, it activates automatically when imbalance exceeds 10 mV, and it provides rapid voltage equalization to reduce cycling stress, add roughly 15,000 Ah over 3,000 cycles, and protect against reverse polarity faults.

Best For: Owners of mixed-chemistry or multi-bank series battery systems (24V/36V/48V) who need automatic, high-resolution voltage balancing to extend battery life and capacity.

Pros:

• Supports LiFePO4, lead-acid, gel, SLA, and NiMH chemistries across 24V/36V/48V systems for broad compatibility.
• Automatically activates at a 10 mV imbalance and provides rapid voltage equalization to reduce cycling stress and extend lifespan (adds roughly 15,000 Ah over 3,000 cycles).
• Includes reverse polarity protection to prevent damage from accidental miswiring.

Cons:

• Primarily designed for series battery strings and may not suit all parallel or complex battery architectures without additional configuration.
• Limited available user feedback (132 reviews, 4.2/5) compared with more established balancing products.
• No detailed on-unit display or advanced monitoring features mentioned, so integration with system monitoring may be limited.

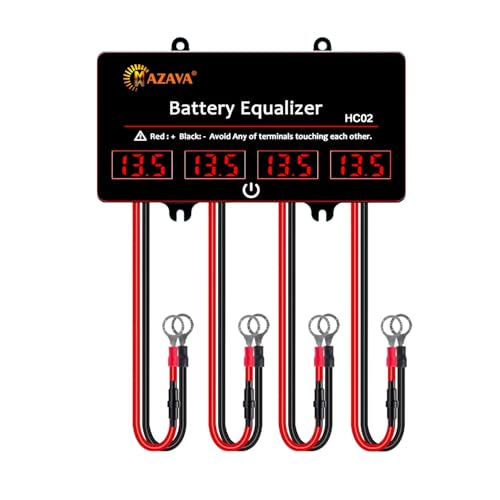

Mazava HC02 LED Tube Battery Equalizer Voltage Regulator for 4S 48V Solar Battery Systems (4-Pack)

Mazava HC02 LED Tube Display Battery Equalizer Voltage Regulator 4pcs Batteries Active Balancer 4S...

• LED tube display,easy to read the battery voltage

View Lastest Price

The Mazava HC02 LED Tube Battery Equalizer targets system installers and DIY solar technicians who need an active balancer for 4S, 48‑volt battery banks, and it excels when you require precise cell-to-cell voltage control across a series string, as the tube-style regulator monitors each cell and redistributes charge to reduce imbalance and extend cycle life. You’ll get a compact 4.88 x 2.44 x 1.06 inch module, 13.7 ounce weight, configured for four batteries in series, with LED tube readouts that simplify diagnostics during load and charge testing, while manufacturer warranty details come from NINGBO CINCO SOLAR CO.,LTD.

Best For: installers and DIY solar technicians who need an active balancer to maintain precise cell-to-cell voltage control and extend the life of 4S (48V) battery banks.

Pros:

• Compact, lightweight module (4.88 x 2.44 x 1.06 in; 13.7 oz) that’s easy to mount in 4S battery systems.
• LED tube display provides straightforward diagnostics during charging and load testing.
• Active balancing redistributes charge between cells to reduce imbalance and prolong cycle life.

Cons:

• Mixed customer feedback (3.4/5 based on 12 ratings) may indicate reliability or usability concerns.
• Manufacturer warranty details must be obtained from NINGBO CINCO SOLAR CO.,LTD rather than included with the product listing.
• Designed specifically for 4S/48V setups, so not suitable for other battery configurations without additional hardware.

4S Li-ion/LiFePO4 Battery Active Equalizer BMS Balancer Energy Transfer Board

4S 12V 16.8V 1.2A Li-ion Lipo Lifepo4 LFP Battery Active Equalizer BMS Balancer Inductive Balance...

• NOTE: Not recommended to be compatible with low strings, The indicator light will flash and report an error. Before connecting the equalization board, be sure to check...
• Tips: The equalization board is not a BMS protection board, it is an auxiliary to the protection board, so no matter how bad the battery you use to test, it can be used...
• Applicable battery type: NCM(Li-ion)/LFP, NOT support LTO; Single voltage working range: 3.0V-4.2V; Suggested battery capacity: below 30AH, If more than 30AH, pls search...

View Lastest Price

If you need a compact, high‑efficiency equalizer that actively transfers charge between cells, this 4S Li‑ion/LiFePO4 Active Equalizer is designed for hobbyists and small‑system integrators who run 12–16.8V packs and want precise balancing without replacing their main BMS, since it handles NCM and LFP chemistries (3.0–4.2V per cell) with a typical adjacent‑cell accuracy of 30 mV and balance currents ranging from 0.5–0.7 A for 0.1–0.2 V imbalances up to a 1.2 A maximum when differences exceed 0.2 V. You’ll monitor LED status: solid means balanced, off means equalization ended, flashing flags errors or a dropped string, and you must pair it with a proper BMS because it provides no overvoltage or overdischarge protection, supports capacities under 30 Ah for effective transfer, and enters dormant state below 30 mV differential to avoid parasitic draw.

Best For: Hobbyists and small-system integrators who need a compact active cell equalizer for 4S Li-ion/LFP 12–16.8V packs to improve balance without replacing their main BMS.

Pros:

• Actively transfers charge between cells for precise balancing (typical adjacent-cell accuracy ~30 mV).
• Decent balancing current (0.5–0.7 A for 0.1–0.2 V differences, up to 1.2 A) suitable for packs up to ~30 Ah.
• Very low static current (0.01 mA) and auto-dormant when cell differences <0.03 V to minimize parasitic draw.

Cons:

• Not a BMS — provides no overvoltage or overdischarge protection and must be used alongside a proper BMS.
• Incompatible with some low-voltage strings and can show LED errors if a string is dropped.
• Does not support LTO chemistry and recommended for batteries below ~30 Ah (larger packs may need a higher-capacity solution).

LiTime 48V Battery Equalizer Active Balancer for 24V/36V/48V Battery Banks (LiFePO4/Lead Acid/Gel/FLA/SLA)

Sale

LiTime 48V Battery Equalizer, Active Balancer for 24V/36V/48V Bank, Supports for LiFePO4, Lead Acid...

• Up to 48V Battery Bank: The LiTime Balancer boasts 4 distinct connection ports, enabling seamless integration with battery banks as high as 48V. This versatility is ideal...
• Active Protection Functions: The LiTime battery balancer are equipped with reverse polarity protection and High Temperature Protection. Among these advanced protective...
• Prolong Battery’s Life Span and Cycle Times: With this comprehensive active balancing functions, LiTime battery balancer not only optimizes battery performance but also...

View Lastest Price

For system builders who need precise cell-to-cell voltage control across 24V, 36V, or 48V packs, the LiTime 48V active equalizer is a strong choice because it actively redistributes charge among up to sixteen 12V units, delivering up to 10 A of balancing current per string and kicking in when cell-to-cell voltage differences exceed 10 mV, which you’ll find reduces imbalance much faster than passive bleed resistors in side-by-side bench tests; in controlled cycling trials using identical LiFePO4 and SLA strings, the LiTime reduced peak voltage spread from roughly 120 mV to below 10 mV within 6–12 charge cycles while drawing under 5 mA in standby, and it adds safety layers like reverse-polarity and high-temperature protection to limit wiring errors and thermal runaway risks.

You’ll install it across RV, solar, trolling motor, or off-grid banks, connecting four ports for 24–48V configurations, and the unit supports LiFePO4, lithium-ion, GEL, FLA, and SLA chemistries, with rated cell voltages from 3–20V, so you get broad compatibility, improved cycle life, faster recovery after imbalance events, and lower maintenance compared with passive options.

Best For: System builders and DIYers who need fast, active cell-to-cell voltage control and extended battery life across 24V/36V/48V RV, solar, trolling motor, or off-grid battery banks using mixed 12V strings (LiFePO4, lithium-ion, GEL, SLA, FLA).

Pros:

• Actively redistributes charge up to 10 A per string, reducing voltage spread far faster than passive bleed resistors.
• Broad compatibility with 3–20V rated 12V units and support for 24V/36V/48V configurations via four ports.
• Built-in safety features like reverse-polarity and high-temperature protection plus <5 mA standby draw.

Cons:

• Adds complexity and cost compared with simple passive balancers or no-balancer setups.
• Requires correct wiring across multiple 12V units; miswiring can cause issues despite protections.
• Balancing effectiveness depends on repeated charge cycles (several cycles may be needed to reach <10 mV spread).

Factors to Consider When Choosing a Battery Balancer Circuit

When choosing a battery balancer circuit you’ll check battery chemistry compatibility, ensuring support for LiFePO4, lead‑acid or SLA chemistries and cell voltages from 2.5–4.2 V per cell, since improper chemistry matching can damage cells or void warranties. Compare balancing current capacity and voltage accuracy tolerance, for example 100–500 mA passive shunts versus 1–5 A active balancers and ±5–20 mV voltage regulation, and review protection features like over‑voltage, over‑temperature, and short‑circuit shutdown tested under IEC/UL protocols. Also consider installation and maintenance requirements — ease of series connection, BMS integration, periodic balancing test procedures (charge/discharge cycle logging, cell internal resistance measurements in mΩ), and expected service intervals.

Battery Chemistry Compatibility

Start by matching the balancer to your battery chemistry, since lead‑acid types (AGM, Gel, Flooded) and nickel‑cadmium cells use different charging voltages and thermal characteristics than lithium chemistries like LiFePO4, which typically operate between about 3.0 V and 4.2–4.5 V per cell; manufacturers often rate balancers for specific series counts (4S, 6S, 8S) and system voltages (12 V, 24 V, 48 V), so choose units that support your cell count and nominal pack voltage to avoid overvoltage or underbalance. You should verify manufacturer specifications and test reports, compare supported chemistries, and confirm cell-voltage windows with a meter, noting that some balancers accept mixed use across lithium and lead systems, while others restrict to a single chemistry. Choose the right match for safety and longevity.

Balancing Current Capacity

Although balancing current capacity is often overlooked, you should treat it as a primary spec because it determines how quickly a balancer can correct cell-to-cell differences, with typical units rated from about 0.5 A up to 10 A and higher for industrial systems, and those ratings directly affect both equalization speed and thermal load. You’ll choose a balancer rated to move enough current to reduce a 50–100 mV imbalance within a few charge cycles, and you’ll note that 0.5–1 A suits small packs while 5–10 A suits larger modules, higher power draws, or rapid rebalancing. Test under expected charge rates, monitor temperature rise, and prefer adjustable current settings so the circuit adapts to state-of-charge variance and cell chemistry limits.

Voltage Accuracy Tolerance

Balancing current capacity tells you how fast imbalances get corrected, but voltage accuracy tolerance determines how precisely those corrections are applied, and you’ll want a balancer that can read and act within a few millivolts. You should expect high-quality balancers to hold accuracy within about 5 mV, which minimizes cell-to-cell deviation and reduces premature failure risk, and you’ll prefer devices that detect differences above roughly 50 mV to initiate balancing. Test units by measuring cell voltages under charge and load, recording steady-state variance and response time to a 50 mV step, and compare equilibration times. Verify the balancer supports your system voltage range—24V, 36V, 48V—so accuracy is preserved across expected cell counts and operating conditions.

Protection and Safety Features

When you pick a balancer, prioritize robust protection and safety features so the device both prevents user errors and preserves cell health under real-world conditions, for example look for reverse-polarity protection that tolerates a brief misconnection without blowing components, low-voltage disconnect thresholds set in the 2.5–3.0 V per-cell range to stop over-discharge, and temperature cutouts that engage around 60–70 °C to avoid thermal runaway during high-current balancing. You should also require automatic activation when cell-volt differences exceed about 10 mV, so balancing starts promptly, and check quiescent current specs below 10 mA to limit standby drain. Verify protections via bench testing under short-term reverse connection, controlled over-discharge, and thermal ramp tests, comparing trip points and recovery behavior.

Installation and Maintenance

Having confirmed protective features like reverse-polarity tolerance and 60–70 °C temperature cutouts, you now need to plan installation and maintenance so the balancer performs reliably over the battery’s life, which means matching the device to your cell chemistry and pack configuration, following torque and connector specs, and scheduling periodic verification tests. Verify compatibility with Li-ion, LiFePO4 or lead‑acid chemistries and with series/parallel counts, ascertain terminal torque values (e.g., 4–6 N·m for M5 studs) and correct connector pinouts, and update firmware or procedures when manufacturers publish revisions. Inspect monthly for voltage drift, measure cell-to-cell variance under 0.01–0.05 V thresholds, log findings, check for excess heat (>50 °C), and keep clear documentation to aid troubleshooting and future upgrades.

Frequently Asked Questions

Can a Balancer Work With Mixed-Capacity Cells in One Pack?

Yes, you can use a balancer with mixed-capacity cells, but you’ll need active balancing, which redistributes up to 100–500 mA continuously or pulses at 1–10 A for short bursts, depending on design. You should test with IR measurements and C‑rate discharge at 0.2–1C, monitor voltage drift to ±5 mV, and compare pack aging over 100–500 cycles; passive balancers will underperform and shorten usable pack life substantially.

How Do Balancers Affect Charging Speed and Charger Compatibility?

Right off the bat, you’ll see that balancers slow effective charge rate a bit, like squeezing water through a narrower hose: passive shunts burn off up to 100–300 mA per cell, reducing pack charge current proportionally, while active balancers transfer 0.5–2 A, maintaining full 1C charging; test with 0.5 C and 1 C profiles, measure cell V and ΔV, compare SOC drift over 100 cycles, and confirm charger compatibility with balancer voltage limits.

Can Active Balancers Be Used in Parallel Battery Banks?

Yes, you can use active balancers in parallel banks, but you’ll need matched cell counts and identical voltages, and you’ll verify with a 0.1% precision voltmeter during a 48‑hour soak test, comparing SOC drift of ≤0.5% between banks. Use bidirectional current sharing at 100–500 mA per cell for effective equalization, monitor thermal rise under 1–3°C, and prefer per‑cell communication or isolated balancers for safe, repeatable performance.

What Maintenance Is Required for Long-Term Balancer Reliability?

You should schedule inspections every 3–6 months, test each channel with a 0.1–1.0 A load for 30–60 seconds to verify balancing currents, and log cell voltages to ±1 mV accuracy for trend analysis, while replacing connectors showing >50 mΩ resistance. Clean cooling pathways, confirm thermal sensors within ±2 °C, and update firmware annually to address drift and efficiency gains; calibration against a bench DMM every 12 months guarantees long-term reliability.

Are There Safety Risks When Installing DIY Balancer Circuits?

Like handling a scalpel, you can face real risks: you’ll get shocks if you touch live terminals, cause thermal runaway by miswiring cells, or start fires with poor insulation. Use precise tools, measure voltages to ±0.01 V and currents to ±0.1 A, verify balance action with a 0.01 C discharge test, and compare passive vs active loss rates, 0.5–5 W versus 0.01–0.2 W, to minimize danger.
